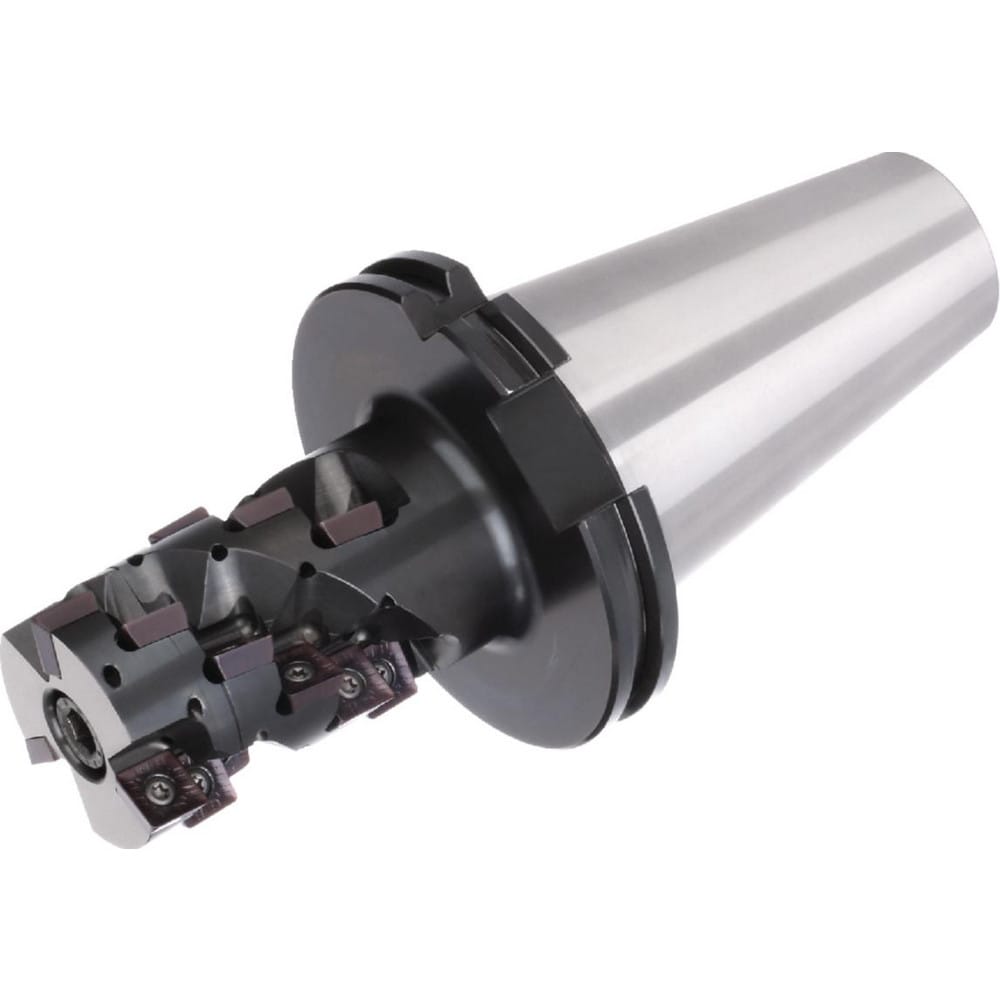

Brand: Widia / Part #: 2021423
Item #: 03948411
Brand: Widia
Model #: 2021423
Product Specifications
| Minimum Cutting Diameter (mm) | 62.99 |
| Maximum Cutting Diameter (mm) | 62.99 |
| Maximum Depth of Cut (mm) | 85.00 |
| Cutter Style | M390 |
| Shank Type | Taper |
| Shank Diameter (mm) | 69.8500 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Shank Taper Size | CV50 |
| Overall Length (mm) | 232.0000 |
| Tool Material | Steel |
| Series | M390 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (mm) | 104.800 |
| Head Length (mm) | 107.00 |
| Modular Connection Size | CAT50 |
| Maximum RPM | 12000.000 |
| Tool Application | Milling; Slotting; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Helical End Mill |
| Rake | Positive |
| Complete Insert Compatibility | SDMT |
| Insert Compatibility | SDMT |
| Hand of Holder | Right Hand |
| Multi-Use Tool | No |
| ISO Number | 12393041400 |
| Manufacturers Catalog Number | 12393041400 |
| Usable Length (mm) | 85.000 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 24 |
| Coolant Through | Yes |
