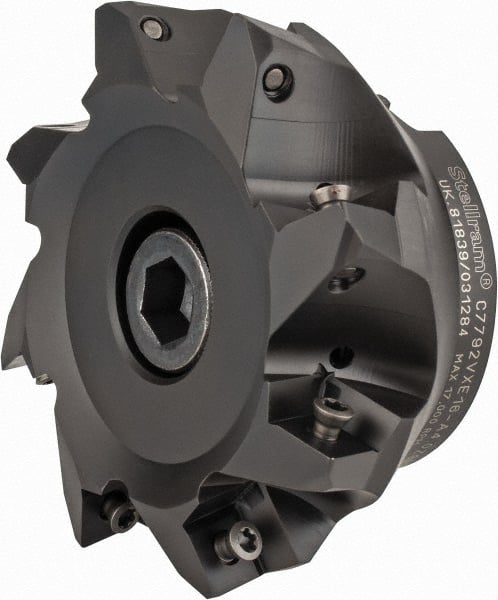

Kennametal - 4" Cut Diam, 0.138" Max Depth, 1-1/4" Arbor Hole, 8 Inserts, XE 16 Insert Style, Indexable Copy Face Mill - C7792VXE16-A4.0Z08R Cutter Style, 1.97" High, Through Coolant, Series 7792
Item #: 70078449
Brand: Kennametal
Model #: 5667941
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (Decimal Inch) | 1.9700 |
| Series | 7792 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | XE 16 |
| Cutter Style | C7792VXE16-A4.0Z08R |
| Through Coolant | Yes |
