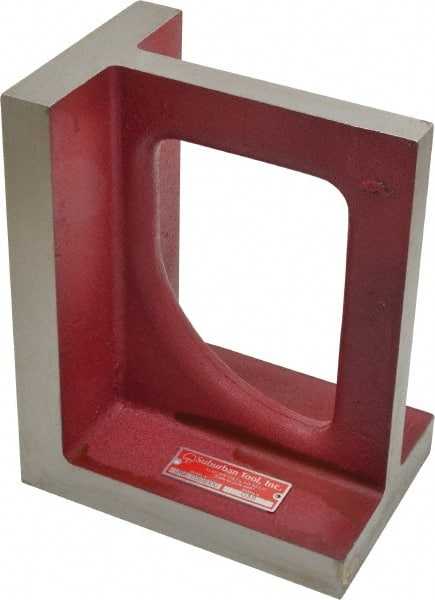

Suburban Tool - 1 Hole, 10" High x 5-1/2" Wide x 8" Deep, Right Angle Iron - Cast Iron, Precision Ground, 1-1/8" Thick, Parallel to within 0.00025" per 6", Square to within 0.0005" per 6"
Item #: 70149075
Brand: Suburban Tool
Model #: URA050810G
Exact Tooling IR#: 04
Features and Benefits
Cast iron offers good vibration, resistance, good wear resistance and machinability. It is heavier and more economical than steel.
| Product Specifications | |
|---|---|
| Type | Right Angle Iron |
| Finish Type | Precision-Ground |
| Width (Inch) | 5-1/2 |
| Depth (Inch) | 8 |
| Height (Inch) | 10 |
| Thickness (Inch) | 1-1/8 |
| Material | Cast Iron |
| Material Grade | Class 35-40 |
| Web Thickness (Inch) | 7/8 |
| Number of Holes | 1 |
| Parallelism (Decimal Inch) | 0.00025 per 6" |
| Squareness (Decimal Inch) | 0.0005 per 6" |
