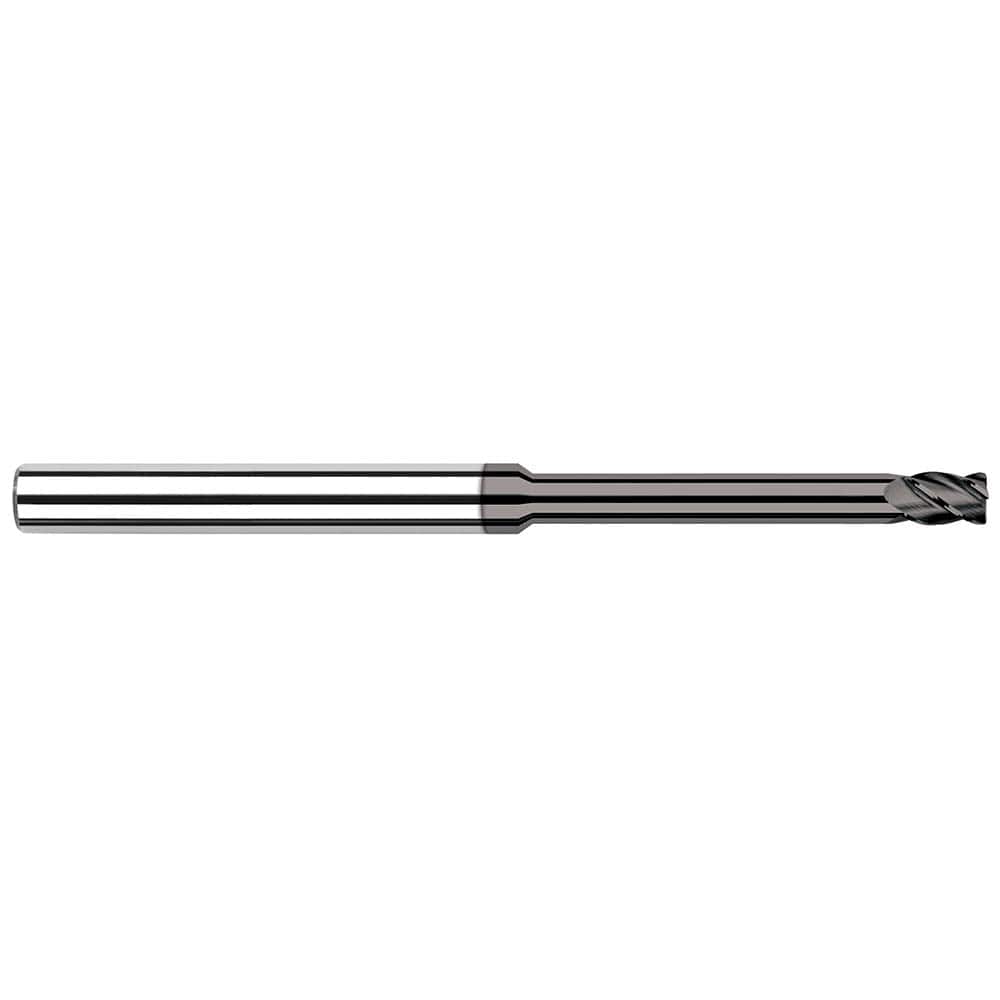

Corner Radius End Mill: 3/16″ Dia, 0.285″ LOC, 0.03″ Radius, 4 Flutes, Solid Carbide 3″ OAL, 3/16″ Shank Dia, 30 ° Helix, CVD Coated, Corner Radius End
Item #: 70194246
Brand: Harvey Tool
Model #: 65612
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 30 |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/16 |
| Reach Length (Inch) | 1-1/2 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius - Long Reach, Stub Flute |
| Single Or Double End | Single |
| Coating/Finish | CVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2850 |
