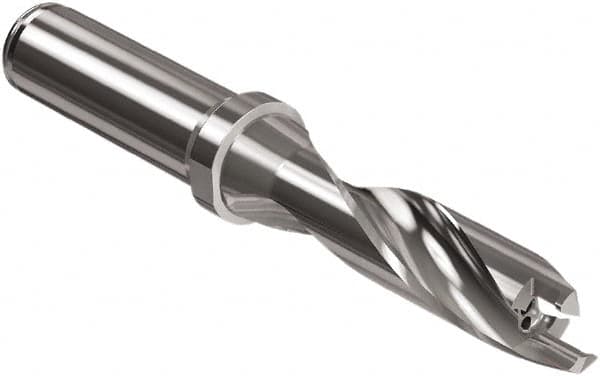

Seco - 16 to 16.99mm Diam, 3xD, 51mm Max Depth, 3/4" Shank Diam, 2-7/16" Flute, 5.035" OAL, Replaceable Tip Drill - SD403 Toolholder, Series Crownloc Plus
Item #: 70199252
Brand: Seco
Model #: 40083
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.0079 |
| Maximum Drill Depth (mm) | 51.00 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Toolholder Style | SD403 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (Decimal Inch) | 2.4370 |
| Body Length (Decimal Inch) | 3.0670 |
| Toolholder Coating | TiAlN |
| Overall Length (Decimal Inch) | 5.0350 |
| Shank Length (Decimal Inch) | 1.9690 |
