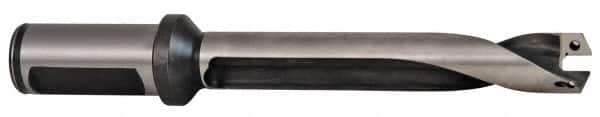

Allied Machine and Engineering - Series 22, 0.8661 to 2.205" Diam, 25mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 72mm Max Depth, 105.3mm Body Length, 161.3mm OAL, Standard Length, Through Coolant
Item #: 70203260
Brand: Allied Machine and Engineering
Model #: 60322H-25CM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 22 |
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (Decimal Inch) | 2.2050 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 161.30 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 72.00 |
| Maximum Drill Depth (Decimal Inch) | 2.8350 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 105.30 |
| Flute Length (Decimal Inch) | 4.1457 |
| Body Length (Decimal Inch) | 4.1457 |
| Body Length (mm) | 105.30 |
| Shank Length (Decimal Inch) | 2.2050 |
| Shank Length (mm) | 56.00 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
