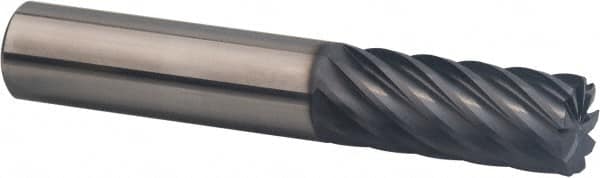

Corner Radius End Mill: 5/8″ Dia, 1-5/8″ LOC, 0.03″ Radius, 9 Flutes, Solid Carbide 3-1/2″ OAL, 5/8″ Shank Dia, 35 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series 66CR
Item #: 70218490
Brand: SGS
Model #: 36633
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 1-5/8 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 9 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3-1/2 |
| Maximum Helix Angle | 35.00 |
| Corner Radius Tolerance | +0.00000 to -0.00200 in |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| Shank Diameter Tolerance | h6 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 66CR |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
