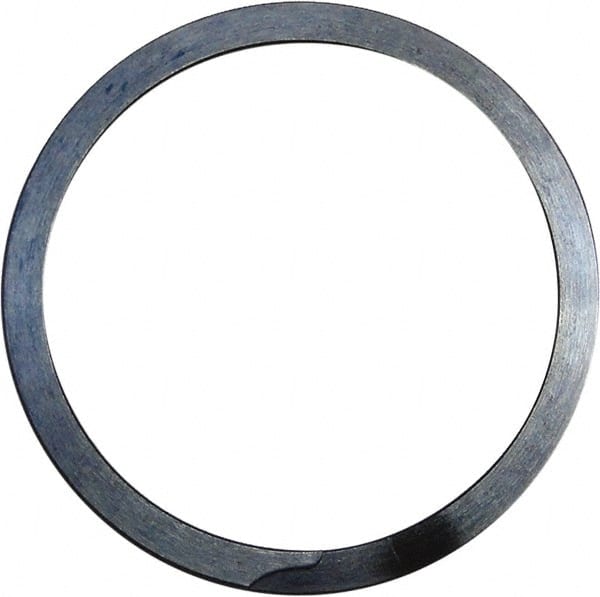

Rotor Clip - 0.111" Thick, Oil Finish, Steel Spiral Internal Retaining Ring - 0.12" Groove Width, 0.13" Groove Depth, 5.26" Groove Diam, Grade 1060-1090
Item #: 70231121
Brand: Rotor Clip
Model #: KG-500ST OIL
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spiral |
| Material | Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 5 |
| Bore Diameter (Decimal Inch) | 5.0000 |
| Groove Diameter (Decimal Inch) | 5.2600 |
| Groove Width (Decimal Inch) | 0.1200 |
| Inside Diameter (Decimal Inch) | 4.6730 |
| Free Outside Diameter (Decimal Inch) | 5.2970 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.1110 |
| Material Grade | 1060-1090 |
| Finish/Coating | Oil |
| Groove Depth (Decimal Inch) | 0.1300 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0060 to 0.0060 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.005 |
| Free Outside Diameter Tolerance (Decimal Inch) | 0.000 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Thrust Load (Lb.) | 45950 (Groove Safety Factor); 69740 (Ring Safety Factor) |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
