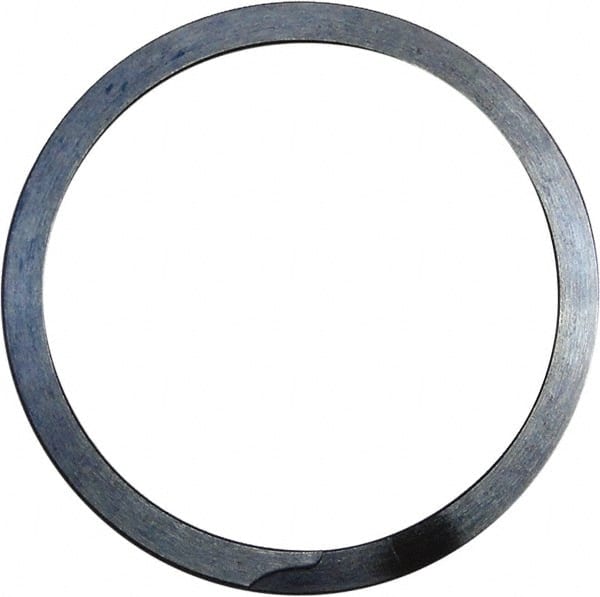

Rotor Clip - 0.111" Thick, Oil Finish, Steel Spiral Internal Retaining Ring - 0.12" Groove Width, 0.112" Groove Depth, 3.974" Groove Diam, Grade 1060-1090
Item #: 70231154
Brand: Rotor Clip
Model #: KG-375ST OIL
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spiral |
| Material | Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 3-3/4 |
| Bore Diameter (Decimal Inch) | 3.7500 |
| Groove Diameter (Decimal Inch) | 3.9740 |
| Groove Width (Decimal Inch) | 0.1200 |
| Inside Diameter (Decimal Inch) | 3.3780 |
| Free Outside Diameter (Decimal Inch) | 4.0020 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.1110 |
| Material Grade | 1060-1090 |
| Finish/Coating | Oil |
| Groove Depth (Decimal Inch) | 0.1120 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0060 to 0.0060 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.005 |
| Free Outside Diameter Tolerance (Decimal Inch) | 0.000 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Thrust Load (Lb.) | 29690 (Groove Safety Factor); 52310 (Ring Safety Factor) |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
