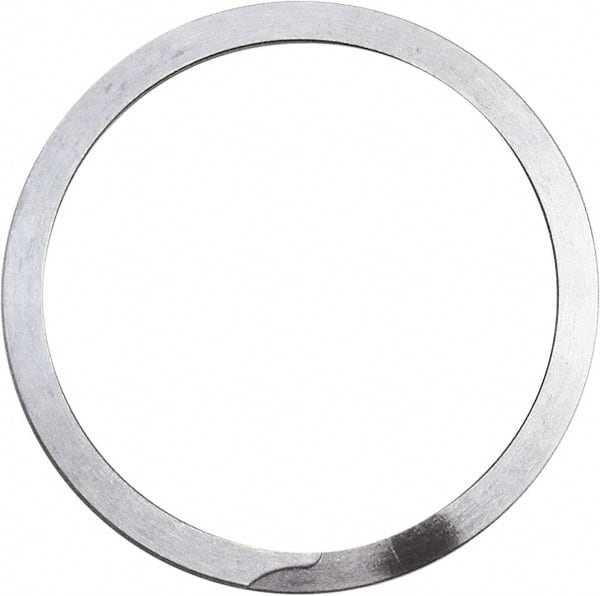

Rotor Clip - 0.05" Thick, Uncoated Finish, Stainless Steel Spiral Internal Retaining Ring - 0.056" Groove Width, 0.042" Groove Depth, 1.396" Groove Diam, Grade 302
Item #: 70231667
Brand: Rotor Clip
Model #: KG-131SJ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spiral |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-5/16 |
| Bore Diameter (Decimal Inch) | 1.3125 |
| Groove Diameter (Decimal Inch) | 1.3960 |
| Groove Width (Decimal Inch) | 0.0560 |
| Inside Diameter (Decimal Inch) | 1.1700 |
| Free Outside Diameter (Decimal Inch) | 1.4060 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Material Grade | 302 |
| Finish/Coating | Uncoated |
| Groove Depth (Decimal Inch) | 0.0420 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | 0.000 to 0.013 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 3900 (Groove Safety Factor); 8660 (Ring Safety Factor) |
| Fastener Standard | AISI 302; AMS-5866 |
