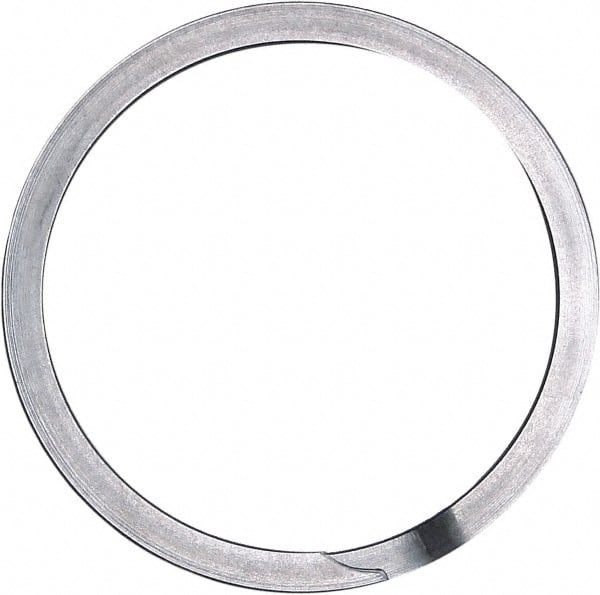

Rotor Clip - 1.886" Groove Diam, 2" Shaft Diam, Oil Stainless Steel, Spiral External Retaining Rings - 0.068" Groove Width, 0.057" Groove Depth, 0.062" Ring Thickness, Grade 302
Item #: 70231808
Brand: Rotor Clip
Model #: CG-200SJ
Exact Tooling IR#: 04
Features and Benefits
Spiral external retaining rings make complete, 360-degree contact with the outside of a shaft once installed. They offer more clearance because they do not have removal lugs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Spiral |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 2 |
| Shaft Diameter (Decimal Inch) | 2.0000 |
| Groove Diameter (Decimal Inch) | 1.8860 |
| Free Diameter (Decimal Inch) | 1.8670 |
| Free Outside Diameter (Decimal Inch) | 2.1830 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Finish/Coating | Oil |
| Material Grade | 302 |
| Groove Width (Decimal Inch) | 0.0680 |
| Groove Depth (Decimal Inch) | 0.0570 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.020 to 0.000 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Fastener Standard | AISI 302; AMS-5866 |
