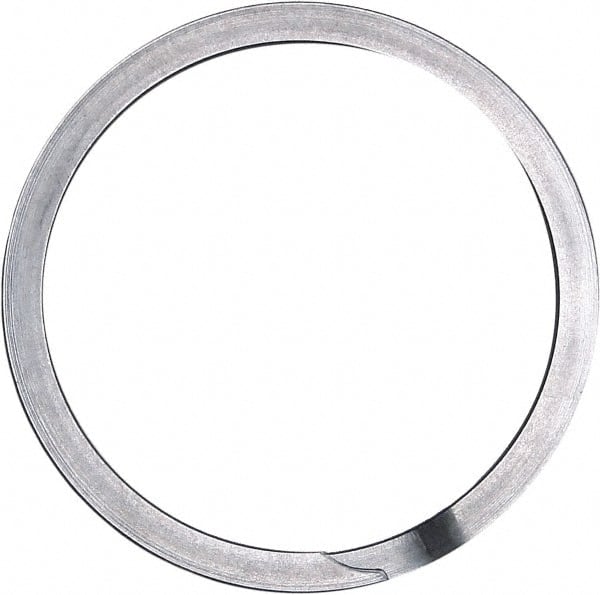

Rotor Clip - 1-13/32" Groove Diam, 1-1/2" Shaft Diam, Oil Stainless Steel, Spiral External Retaining Rings - 0.056" Groove Width, 0.047" Groove Depth, 0.05" Ring Thickness, Grade 302
Item #: 70231840
Brand: Rotor Clip
Model #: CG-150SJ
Exact Tooling IR#: 04
Features and Benefits
Spiral external retaining rings make complete, 360-degree contact with the outside of a shaft once installed. They offer more clearance because they do not have removal lugs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Spiral |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 1-1/2 |
| Shaft Diameter (Decimal Inch) | 1.5000 |
| Groove Diameter (Decimal Inch) | 1.4060 |
| Free Diameter (Decimal Inch) | 1.3900 |
| Free Outside Diameter (Decimal Inch) | 1.6260 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Finish/Coating | Oil |
| Material Grade | 302 |
| Groove Width (Decimal Inch) | 0.0560 |
| Groove Depth (Decimal Inch) | 0.0470 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.013 to 0.000 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Fastener Standard | AISI 302; AMS-5866 |
