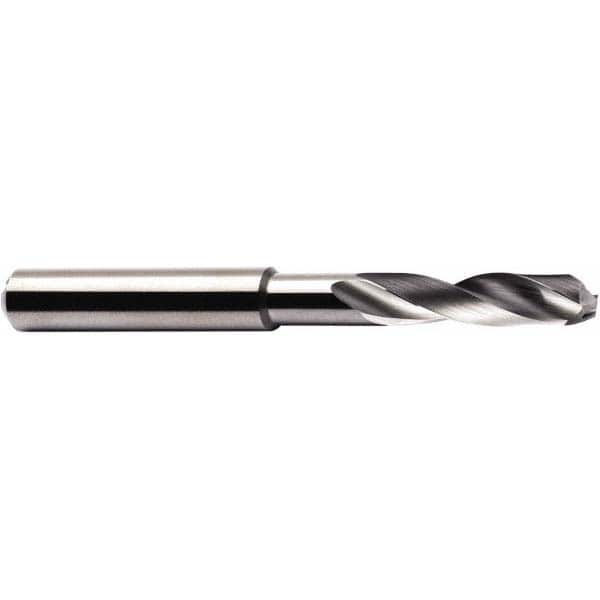

Screw Machine Length Drill Bit: 0.5118″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD203A
Item #: 70253059
Brand: Seco
Model #: 02691594
Product Specifications
| Drill Bit Size (mm) | 13.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5510 |
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Overall Length (Decimal Inch) | 4.2130 |
| Series | SD203A |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.4200 |
| Shank Length (Decimal Inch) | 1.7720 |
| Drill Point Length (mm) | 2.40 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Standards | DIN |
| Flute Length (Decimal Inch) | 2.3620 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Specification Designation | DIN |
