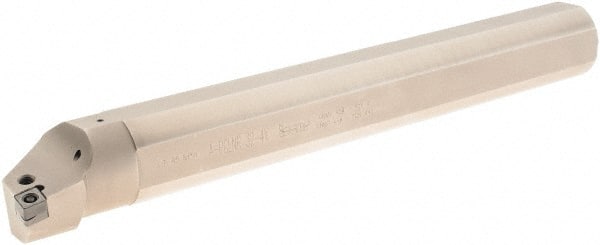

Iscar - 2.56" Min Bore Diam, 16" OAL, 2" Shank Diam, A-PCLN Indexable Boring Bar - 2.48" Max Bore Depth, CNMX 45.. Insert, Lever Holding Method
Item #: 70279096
Brand: Iscar
Model #: 3602749
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PCLN |
| Series | Heliturn LD |
| Minimum Bore Diameter (Decimal Inch) | 2.5600 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.4800 |
| Overall Length (Decimal Inch) | 16.0000 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | CNMX 45.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 1.2800 |
| Rake Angle | -12 |
| Complete Insert Compatibility | CNMX 451-M4MW; CNMX 452-M4MW; CNMX 452-M4PW; CNMX 453-M4MW; CNMX 453-M4PW; CNMX 454-M4PW |
