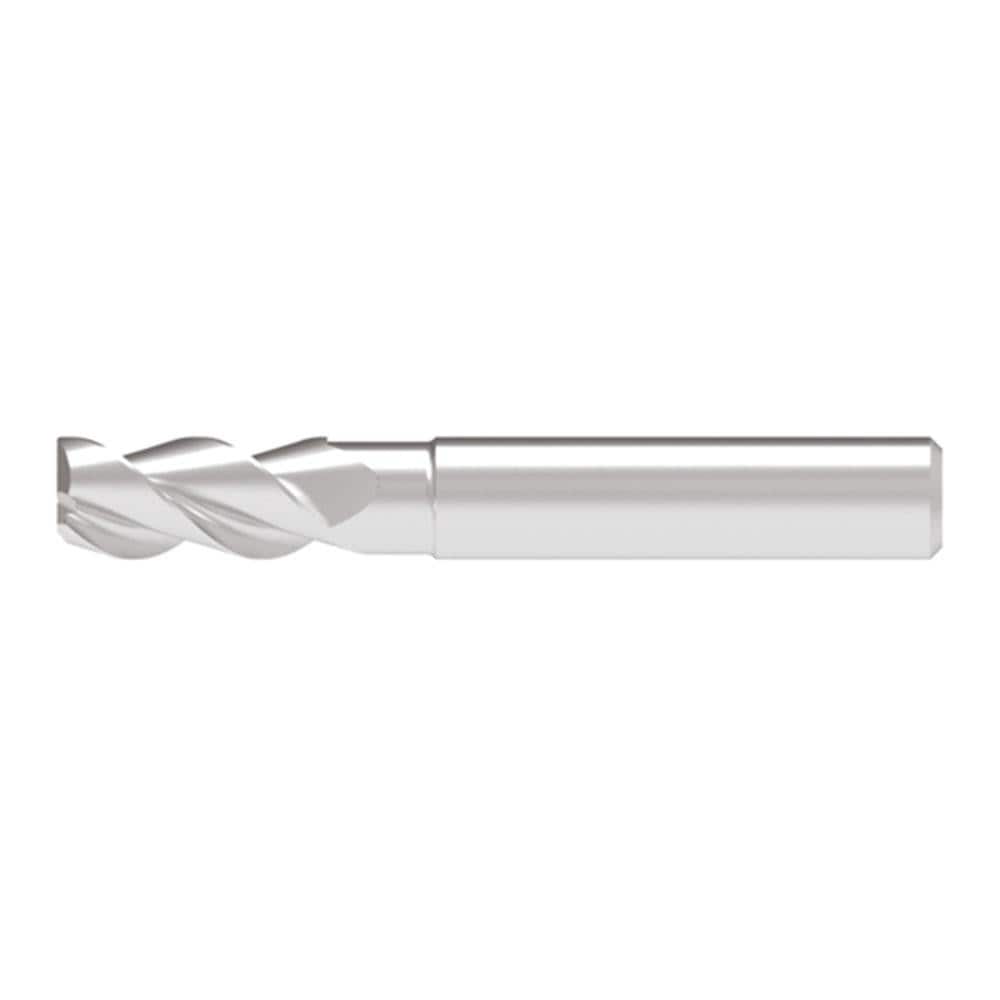

Corner Chamfer End Mill: 2.00 mm Dia, 4.50 mm LOC, 3 Flute, 0.05 mm Chamfer Width, Solid Carbide
Item #: 05878251
Brand: WNT
Model #: 5361102100
Product Specifications
| Mill Diameter (mm) | 2.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 4.50 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.05 |
| Overall Length (mm) | 50.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Short |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 1.800 |
| UNSPSC Code | 23241614 |
| Series | 53611 |
