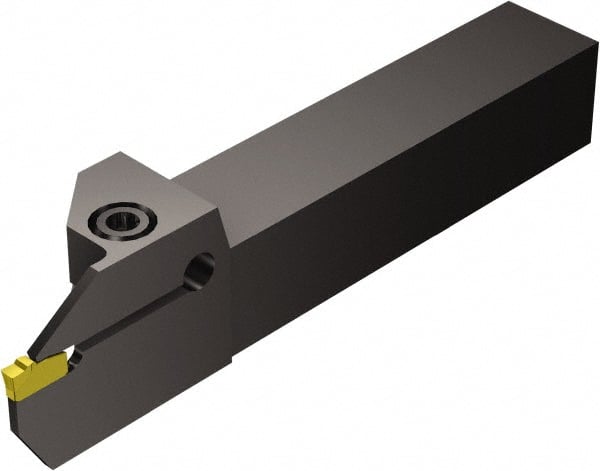

Sandvik Coromant - 24.89mm Max Depth, 3.96mm to 6mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 70417530
Brand: Sandvik Coromant
Model #: 5733614
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 24.89 |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Minimum Groove Width (Decimal Inch) | 0.1560 |
| Minimum Groove Width (mm) | 3.96 |
| Maximum Groove Width (mm) | 6.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Series | T-Max? Q-Cut |
| Toolholder Style | LF151.23 |
| Insert Compatibility | N151.2-400-5E |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (mm) | 25.40 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Length (mm) | 25.40 |
| Head Length (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 4.1500 |
| Shank Length (mm) | 105.41 |
| Manufacturers Catalog Number | LF151.23-16-40 |
| Insert Seat Size | 40.0 |
