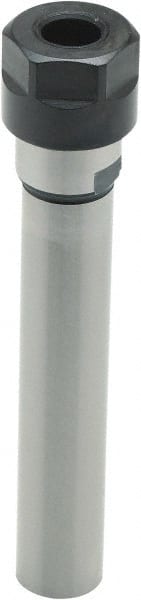

Parlec - 3mm to 30mm Capacity, 2.43" Projection, Straight Shank, ER40 Collet Chuck - 4.13" OAL, 1-1/4" Shank Diam
Item #: 70450887
Brand: Parlec
Model #: ER40-125-413
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Projection (Decimal Inch) | 2.4300 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1181 |
| Minimum Collet Capacity (mm) | 3.00 |
| Maximum Collet Capacity (mm) | 30.00 |
| Maximum Collet Capacity (Decimal Inch) | 1.1811 |
| Overall Length (Decimal Inch) | 4.1300 |
| Type | ER Collet |
| Shank Length (Decimal Inch) | 1.7000 |
| Nose Diameter (Decimal Inch) | 2.3590 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 2.3590 |
