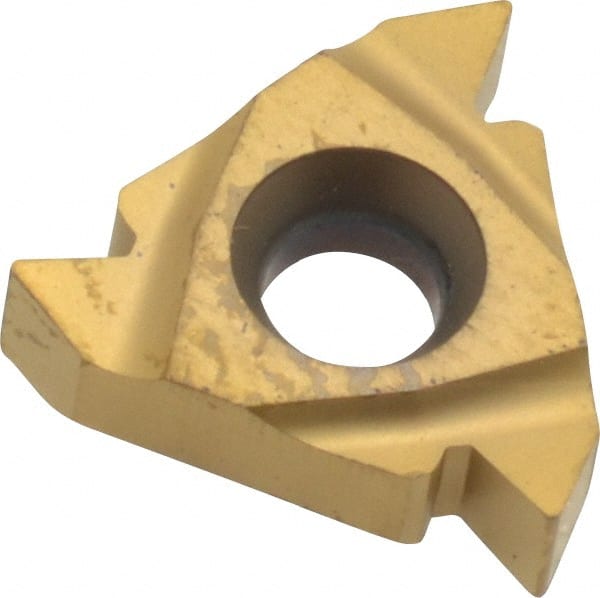

Seco - 16ER External Right Hand 14-8 Partial Profile 60° Laydown Threading Insert - Grade CP500, TiAlN/TiN Coated Carbide
Item #: 70482542
Brand: Seco
Model #: 50209
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | Partial Profile 60 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Threads Per Inch | 14-8 |
| Pitch (mm) | 1.75-3.00 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1366 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0070 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.043 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.059 |
