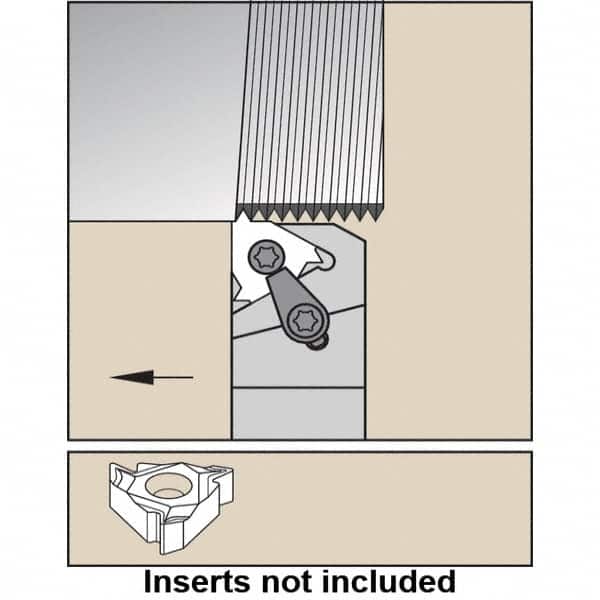

Kennametal - External Thread, Right Hand Cut, 32mm Shank Width x 32mm Shank Height Indexable Threading Toolholder - 170mm OAL, LT 22ER Insert Compatibility, LSAS Toolholder, Series LT Threading
Item #: 70525126
Brand: Kennametal
Model #: 1611931
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (Decimal Inch) | 6.6929 |
| Overall Length (mm) | 170.00 |
| Insert Compatibility | LT 22ER |
| Series | LT Threading |
| Toolholder Style | LSAS |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 36.00 |
| Head Length (Decimal Inch) | 1.4173 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
