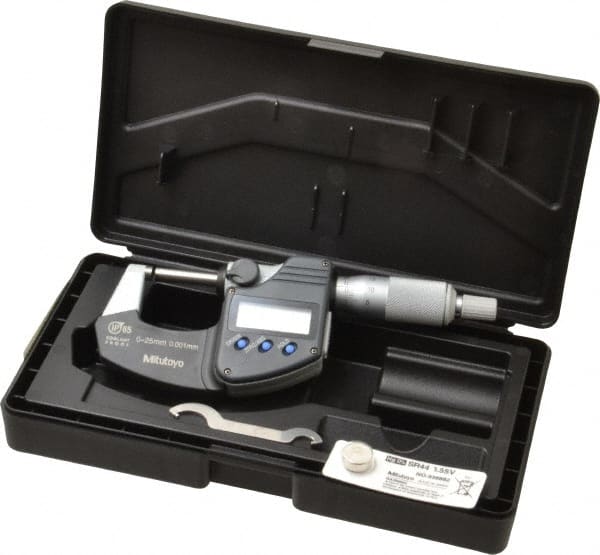

Mitutoyo - 0 to 25 mm Range, 0.001 mm Resolution, Standard Throat, IP65 Electronic Outside Micrometer - 0.001 Inch Accuracy, Ratchet Stop Thimble, Carbide Face, SR44 Battery, Data Output, Plastic Case, Includes NIST Traceable Certification of Inspection
Item #: 70538780
Brand: Mitutoyo
Model #: 293-230-30
Exact Tooling IR#: 04
Features and Benefits
Ratchet stop thimbles offer audible feedback and constant measuring pressure on the spindle while measuring. They may cause microshocks and require two hands to make a measurement.
| Product Specifications | |
|---|---|
| Type | Standard |
| Minimum Measurement (mm) | 0.00 |
| Maximum Measurement (mm) | 25.00 |
| Thimble Type | Ratchet Stop |
| Resolution (mm) | 0.0010 |
| Accuracy Plus/Minus (mm) | 0.0010 |
| Accuracy Plus/Minus (Decimal Inch) | 0.001000 |
| Accuracy (micro m) | 1.00 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | No |
| Data Output | Yes |
| Measuring Face Material | Carbide |
| Battery Type | SR44 |
| Includes | Certification of Inspection; Plastic Case |
