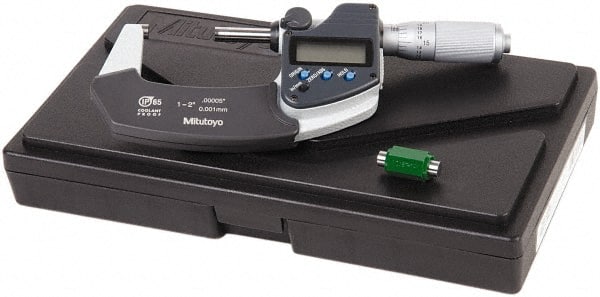

Mitutoyo - 1 to 2 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer - 0.0001 Inch Accuracy, Friction Thimble, Carbide Face, SR44 Battery, Data Output, Plastic Case, Includes NIST Traceable Certification of Inspection
Item #: 70538889
Brand: Mitutoyo
Model #: 293-336-30
Exact Tooling IR#: 04
Features and Benefits
Friction thimbles offer a smooth measuring operation and resist shock. They do not offer audible feedback, but are designed to be closer to the operator's hand.
| Product Specifications | |
|---|---|
| Type | Standard |
| Minimum Measurement (Decimal Inch) | 1.0000 |
| Minimum Measurement (mm) | 25.40 |
| Maximum Measurement (mm) | 50.80 |
| Maximum Measurement (Decimal Inch) | 2.0000 |
| Thimble Type | Friction |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Accuracy Plus/Minus (mm) | 0.0010 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000050 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | No |
| Data Output | Yes |
| Measuring Face Material | Carbide |
| Battery Type | SR44 |
| Includes | Certification of Inspection; Plastic Case |
