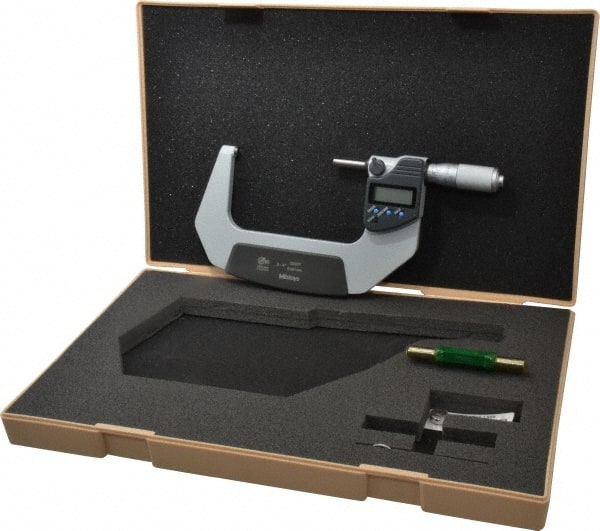

Mitutoyo - 3 to 4 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer - 0.0001 Inch Accuracy, Ratchet Friction Thimble, Carbide Face, SR44 Battery, Plastic Case
Item #: 70538939
Brand: Mitutoyo
Model #: 293-347-30
Exact Tooling IR#: 04
Features and Benefits
Ratchet friction thimbles are easy-to-reach and provide audible and constant measuring pressure on the spindle while measuring. They are considered to be a combination of friction and ratchet stop thimbles.
| Product Specifications | |
|---|---|
| Type | Standard |
| Minimum Measurement (Decimal Inch) | 3.0000 |
| Minimum Measurement (mm) | 76.20 |
| Maximum Measurement (mm) | 101.60 |
| Maximum Measurement (Decimal Inch) | 4.0000 |
| Thimble Type | Ratchet-Friction |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Accuracy Plus/Minus (mm) | 0.0020 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000100 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | No |
| Data Output | No |
| Measuring Face Material | Carbide |
| Battery Type | SR44 |
| Includes | Plastic Case |
