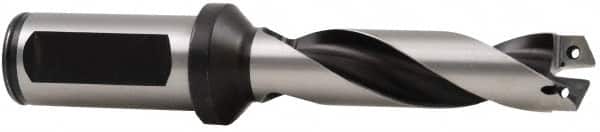

Allied Machine and Engineering - Series 0.5, 39/64 to 11/16" Diam, 3/4" Diam Straight Shank with Flange, Helical Flute Spade Drill - 7" Max Depth, 8-15/64" Body Length, 10-5/32" OAL, Long Length, Through Coolant
Item #: 70587290
Brand: Allied Machine and Engineering
Model #: 26005H-075F
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 0.5 |
| Minimum Drill Diameter (Inch) | 39/64 |
| Maximum Drill Diameter (Inch) | 11/16 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Long Length |
| Overall Length (Inch) | 10-5/32 |
| Maximum Drill Depth (Inch) | 7 |
| Flute Type | Helical Flute |
| Flute Length (Inch) | 8-1/8 |
| Body Length (Inch) | 8-15/64 |
| Shank Length (Inch) | 2-1/32 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
