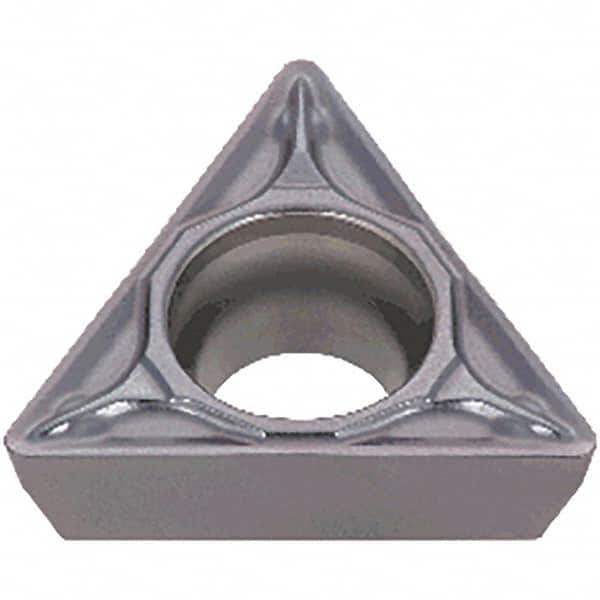

Turning Insert
Item #: 70602172
Brand: Tungaloy
Model #: 6856675
Product Specifications
| Insert Style | TPMT |
| Insert Shape Code | T |
| Insert Size Code | 110202 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | M |
| Manufacturer Grade | AH725 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 2.50 |
| Inscribed Circle (mm) | 6.35 |
| Insert Thickness | 2.38 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPMT |
| Rake | Positive |
| Insert Length (mm) | 11.00 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | TPMT110202-PS |
| Standards | ISO |
| Chip Breaker | PS |
| Coating/Finish | Coated |
