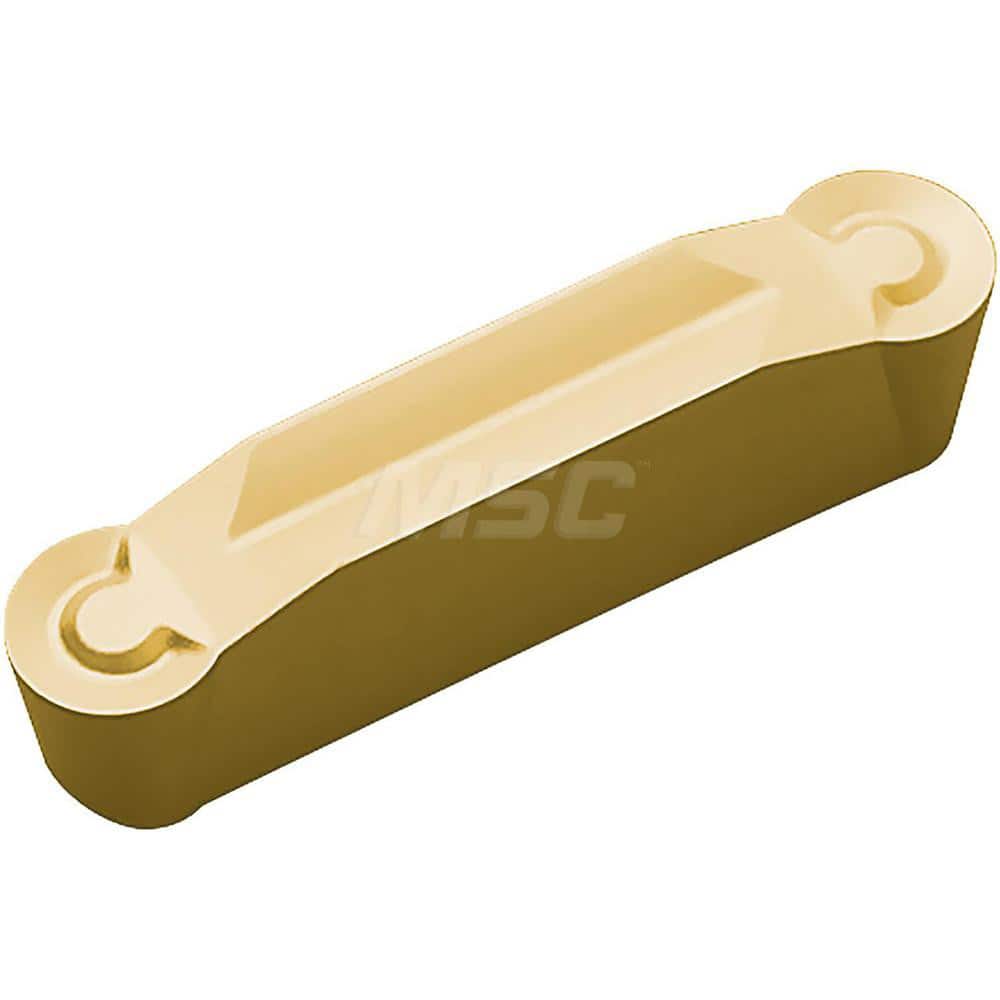

Grooving Insert: GMM5020250R CR9025, Solid Carbide TiCN & TiN Finish, Neutral, 5 mm Cutting Width, 25 mm Max Depth, Series KGM
Item #: 70620547
Brand: Kyocera
Model #: TKW13030
Product Specifications
| Insert Style | GMM |
| Insert Size | 5020250 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CR9025 |
| Cutting Width (mm) | 5.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 2.50 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Copying |
| Series | KGM |
| Coating Process | CVD |
| Iso Code | GMM5020-250R |
| Manufacturers Catalog Number | GMM5020250RCR9025 |
| Minimum Groove Width (mm) | -0.05 |
| Maximum Groove Width (mm) | 0.05 |
| Chip Breaker | R |
| Full Radius | Yes |
| Overall Width | 5.00 |
| Coating/Finish | TiCN; TiN |
| Number Of Cutting Edges | 2 |
