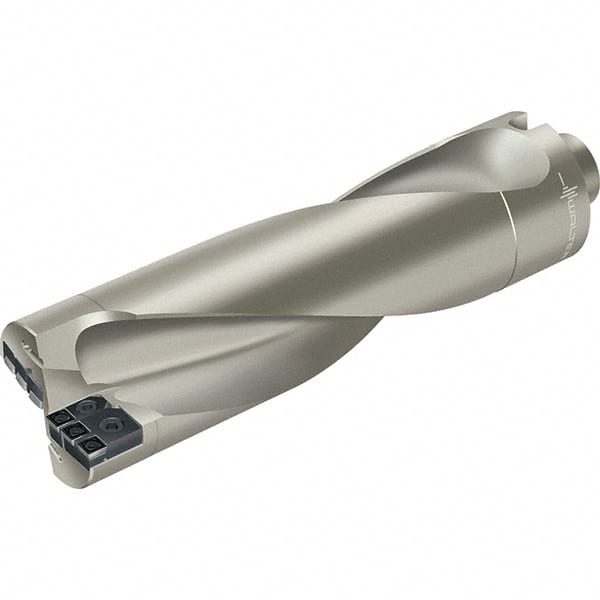

Walter - 240mm Max Drill Depth, 3xD, 80mm Diam, Indexable Insert Drill - 4 Inserts, NCT 80 Modular Connection Shank
Item #: 70628870
Brand: Walter
Model #: 6056343
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | B4213 |
| Drill Diameter (mm) | 80.00 |
| Drill Diameter (Decimal Inch) | 3.1496 |
| Maximum Drill Depth (mm) | 240.00 |
| Maximum Drill Depth (Decimal Inch) | 9.4488 |
| Shank Type | Modular Connection |
| Modular Connection Size | NCT 80 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.1790; 0.1930; 0.2170; 0.2340; 0.2560; 0.2760; 0.3070; 0.3310; 0.3760; 0.4050; 0.4630; 0.4820; 0.5520; 0.5780; 0.6500; 0.6890 |
| Number of Drill Inserts | 4 |
| Overall Length/Projection (mm) | 290.00 |
| Overall Length/Projection (Decimal Inch) | 11.4173 |
| Insert Compatibility | P4840C-.R-E67; P4841C-.R-A57; P4841C-.R-E57 |
| Series | Xtra-tec |
