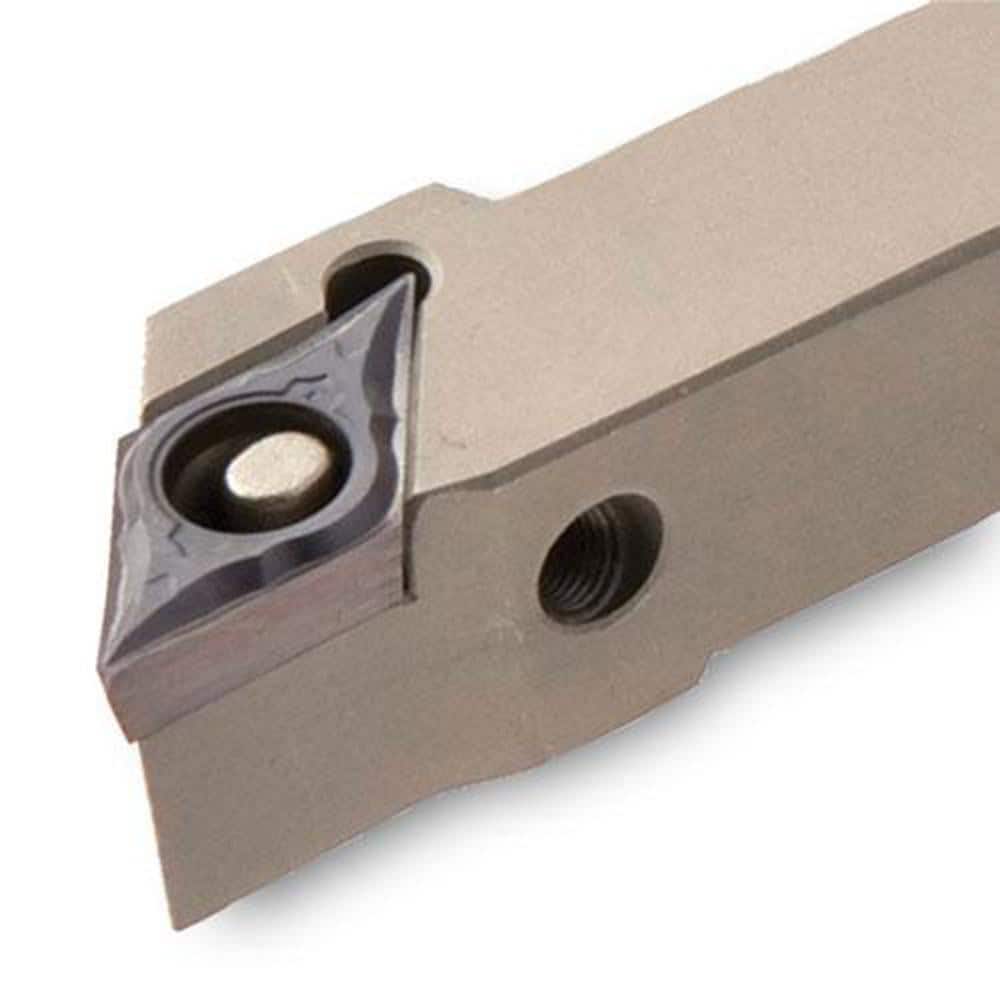

Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: DC..21.5.; Toolholder Style: BDJCR; Rake: Positive; Rake Angle: 7.000; Multi-use Tool: No; Lead Angle: 93.0; Insert Holding Method: Lever; Shank Width (Decimal Inch
Item #: 70631817
Brand: Ingersoll Cutting Tools
Model #: 3606639
Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | DC..21.5. |
| Toolholder Style | BDJCR |
| Rake | Positive |
| Rake Angle | 7.000 |
| Multi-use Tool | No |
| Lead Angle | 93.0 |
| Insert Holding Method | Lever |
| Shank Width (Decimal Inch) | 0.3750 |
| Shank Width (Inch) | 3/8 |
| Shank Height (Decimal Inch) | 0.3750 |
| Shank Height (Inch) | 3/8 |
| Series | BDJCR; L-SH |
| Overall Length (mm) | 5.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Turning |
| Toolholder Material | Steel |
