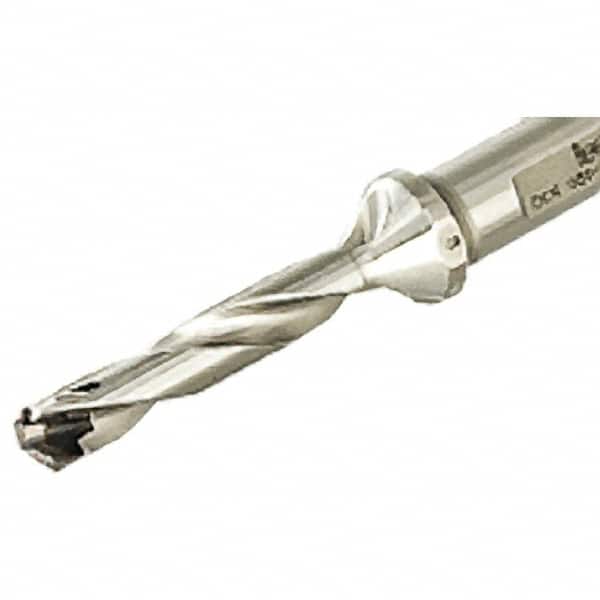

Iscar - 14mm to 14.41mm Diam, 5xD, 70mm Max Depth, 16mm Shank Diam, 138.31mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 70639232 Toolholder, Series SumoCham
Item #: 70639232
Brand: Iscar
Model #: 3202428
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 14.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.5516 |
| Maximum Drill Diameter (mm) | 14.41 |
| Maximum Drill Diameter (Decimal Inch) | 0.5674 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.7580 |
| Maximum Drill Depth (mm) | 70.05 |
| Shank Diameter (mm) | 16.01 |
| Shank Diameter (Decimal Inch) | 0.6304 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 90.27 |
| Body Length (Decimal Inch) | 3.5539 |
| Overall Length (mm) | 138.31 |
| Overall Length (Decimal Inch) | 5.4451 |
| Shank Length (mm) | 48.04 |
| Shank Length (Decimal Inch) | 1.8912 |
