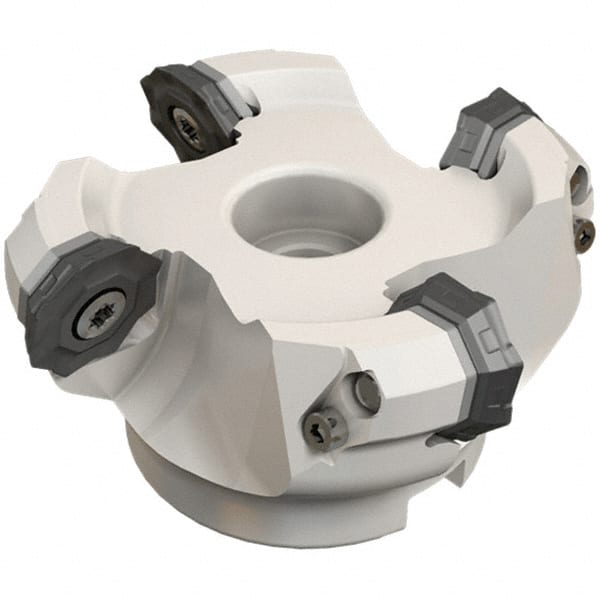

Iscar - 112.5mm Cut Diam, 32mm Arbor Hole, 4.6mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 6 Inserts, OF..\xB6RFM. 1905 Insert, Right Hand Cut, 6 Flutes, Series Heliocto
Item #: 70711296
Brand: Iscar
Model #: 3103245
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 112.50 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 42 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | OF..; RFM. 1905 |
| Series | Heliocto |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 4.60 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | HOF |
| Number of Flutes | 6 |
| Keyway Width (mm) | 14.40 |
| Maximum Body Diameter (Decimal Inch) | 3.9370 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Counterbore Diameter (Decimal Inch) | 1.6930 |
| Complete Insert Compatibility | OFCR/OFCT-AEN/AETN; OFCT/OFCR-RW/AER (Wiper); OFMT 07; OFMW-AETN; OFMW-FF; RFMT 1905-76; RFMW 1905 |
