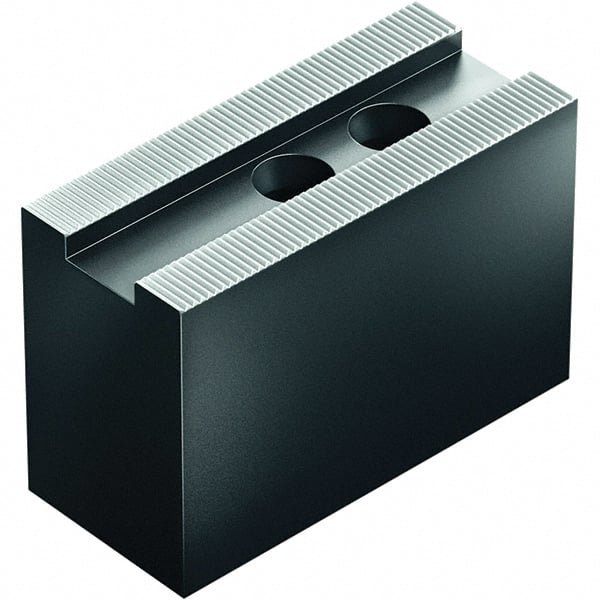

Schunk - 14" Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 43mm Btw Mount Hole Ctrs, 80mm High, 22mm Groove, M20mm Fastener
Item #: 70755616
Brand: Schunk
Model #: 132132
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 14 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 14.0000 |
| Maximum Compatible Chuck Diameter (mm) | 360.00 |
| Minimum Compatible Chuck Diameter (mm) | 400.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 16.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 16 |
| Overall Height (mm) | 80.00 |
| Overall Height (Decimal Inch) | 3.1496 |
| Groove Width (mm) | 22.00 |
| Groove Width (Decimal Inch) | 0.8661 |
| Distance Between Mount Hole Centers (mm) | 43.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.6929 |
| Tongue Width (Decimal Inch) | 0.0000 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M20 |
| Number of Jaws | 3 |
