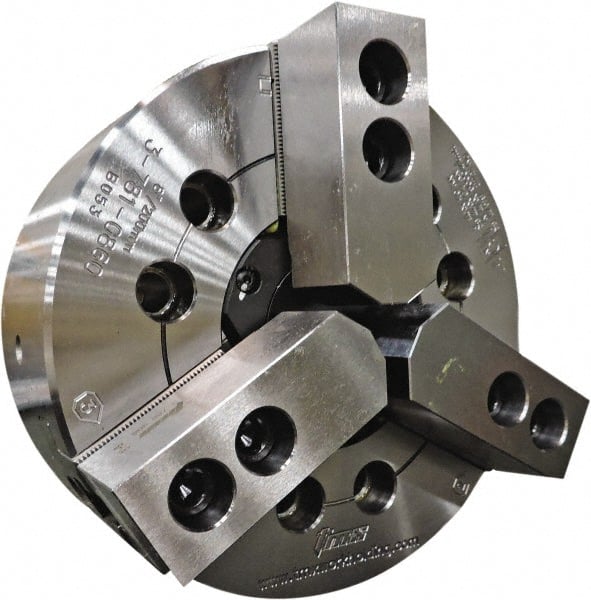

TMX - 3 Jaws, 8" Chuck Diam, A2-6 Mount, 2.5984" Through Hole, Drawtube, Hydraulic Power Lathe Chuck - 0.4331" to 8.2677" Jaw Capacity, 5,000 RPM
Item #: 70767322
Brand: TMX
Model #: 3-771-0860
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 8 |
| Chuck Diameter (Decimal Inch) | 8.0000 |
| Number of Jaws | 3 |
| Mount | A2-6 |
| Through-Hole Diameter (Decimal Inch) | 2.5984 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Minimum Jaw Capacity (Decimal Inch) | 0.4331 |
| Maximum Jaw Capacity (Decimal Inch) | 8.2677 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2992 |
| Maximum Static Gripping Force (lbf) | 21159.00 |
| Moment of Inertia (lb/sq ft) | 0.15 |
| Maximum RPM | 5000 |
