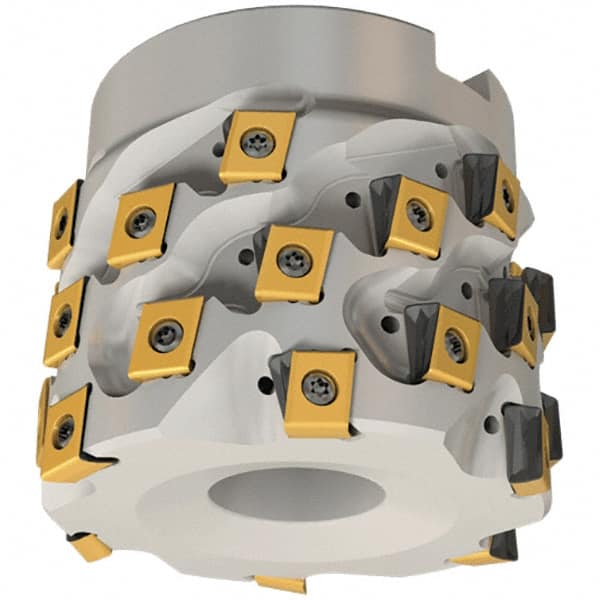

Iscar - 25 Inserts, 63mm Cut Diam, 25.4mm Arbor Diam, 59mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 80mm High, T490 LN.. Insert Compatibility, Through Coolant, Series Helitang
Item #: 70789979
Brand: Iscar
Model #: 3105105
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0 |
| Overall Height (mm) | 80.00 |
| Overall Height (Decimal Inch) | 3.1496 |
| Insert Compatibility | T490 LN.. |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 59.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3228 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 25 |
| Insert Holding Method | Screw |
| Cutter Style | T490 SM-13 |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 56.00 |
| Hub Diameter (Decimal Inch) | 2.2047 |
| Complete Insert Compatibility | T490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS |
