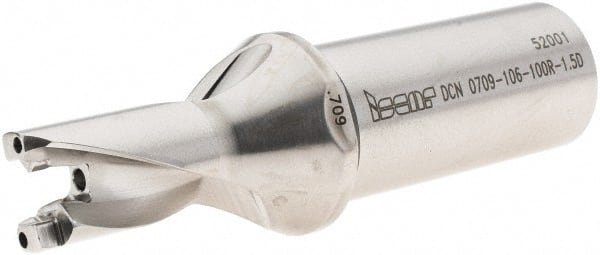

Iscar - 0.709" to 0.744" Diam, 1.5xD, 1.06" Max Depth, 1" Shank Diam, 4.39" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 18 Seat Size, 70794714 Toolholder, Series SumoCham
Item #: 70794714
Brand: Iscar
Model #: 3202643
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.7090 |
| Maximum Drill Diameter (Decimal Inch) | 0.7440 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.0600 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 18 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 2.1900 |
| Overall Length (Decimal Inch) | 4.3900 |
| Shank Length (Decimal Inch) | 2.2000 |
