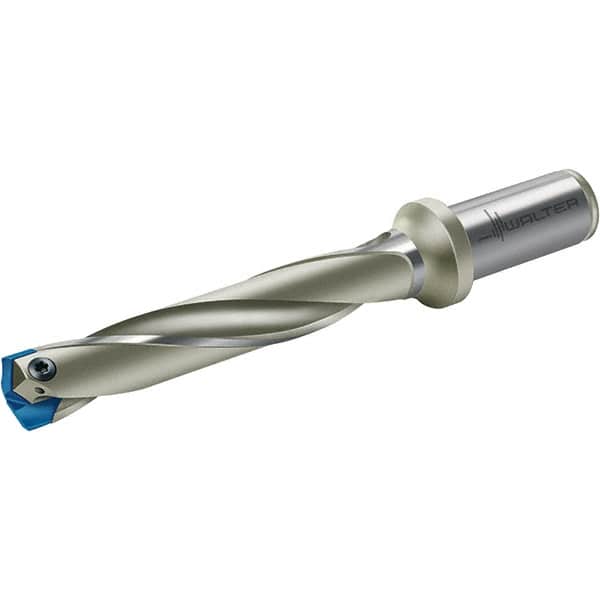

Walter - 13mm Diam, 5xD, 67mm Max Depth, 20mm Shank Diam, 148mm OAL, Replaceable Tip Drill - P6001-D13..R, P6002-D13..R, P6003-D13..R, P6004-D13..R Insert, B 4015 Toolholder, Series Xtra-tec
Item #: 70873120
Brand: Walter
Model #: 5044323
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Xtra-tec |
| Maximum Drill Diameter (mm) | 13.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.5118 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.6378 |
| Maximum Drill Depth (mm) | 67.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | P6001-D13..R; P6002-D13..R; P6003-D13..R; P6004-D13..R |
| Toolholder Style | B 4015 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 98.00 |
| Body Length (Decimal Inch) | 3.8583 |
| Overall Length (mm) | 148.00 |
| Overall Length (Decimal Inch) | 5.8268 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
