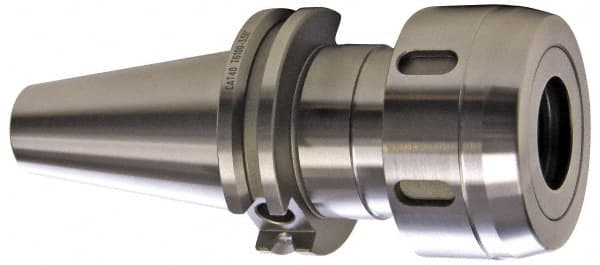

Accupro - 1/2" to 1-1/2" Capacity, 6" Projection, CAT40 Taper Shank, TG/PG 150 Collet Chuck - 0.0002" TIR, Through-Spindle & DIN Flange Coolant
Item #: 70899935
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 150 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 6.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/2 |
| Maximum Collet Capacity (Inch) | 1-1/2 |
| Actuator Type | Drawbar |
| Maximum RPM | 20000 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
