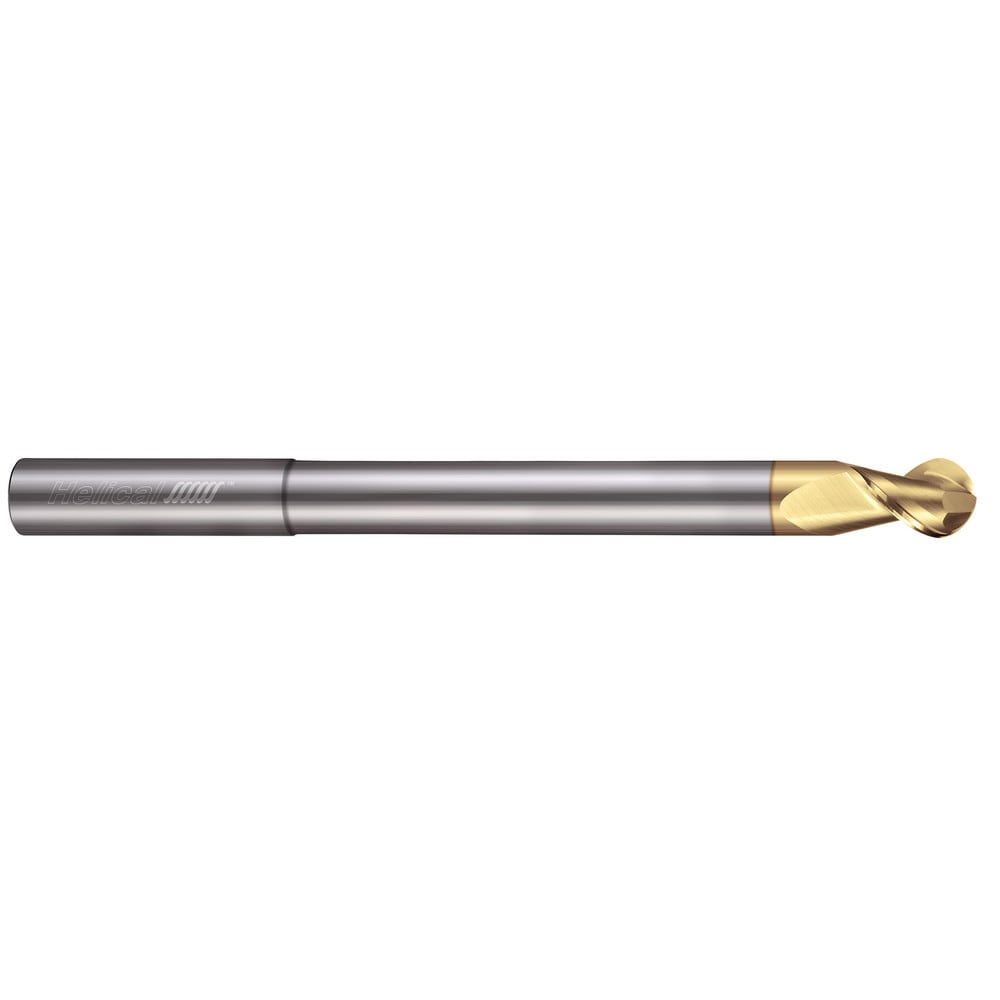

Ball End Mill: 5/16" Dia, 7/16" LOC, 2 Flute, Solid Carbide
Item #: 55602197
Brand: Helical Solutions
Model #: 18167
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 7/16 |
| Coating/Finish | Zplus |
| Overall Length (Inch) | 4 |
| Shank Diameter (Inch) | 5/16 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 45 |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 - 0.7000 |
| Length Type | Stub |
| Helix Style | High |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Neck Diameter (Decimal Inch) | 0.2960 |
| Nose Radius (Decimal Inch) | 0.1563 |
| Neck Length (Decimal Inch) | 0.6830 |
| Reach Length (Inch) | 1-1/8 |
| Reach Length (Decimal Inch) | 1.1200 |
| Mill Diameter Tolerance | h6 |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.0620/-0.0620 in |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 2 Flute, Ball - 45° Helix, Reduced Neck, End Mills for Aluminum Alloys & Non-Ferrous Materials |
| Flute Type | Spiral |
| TIR Maximum (Decimal Inch) | 0.0003 |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4370 |
| Manufacturers Catalog Number | 18167 |
| System Of Measurement | Fractional Inch |
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 7/16 |
| Coating/Finish | Zplus |
| Overall Length (Inch) | 4 |
| Shank Diameter (Inch) | 5/16 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 45 |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 - 0.7000 |
| Length Type | Stub |
| Helix Style | High |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Neck Diameter (Decimal Inch) | 0.2960 |
| Nose Radius (Decimal Inch) | 0.1563 |
| Neck Length (Decimal Inch) | 0.6830 |
| Reach Length (Inch) | 1-1/8 |
| Reach Length (Decimal Inch) | 1.1200 |
| Mill Diameter Tolerance | h6 |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.0620/-0.0620 in |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 2 Flute, Ball - 45° Helix, Reduced Neck, End Mills for Aluminum Alloys & Non-Ferrous Materials |
| Flute Type | Spiral |
| TIR Maximum (Decimal Inch) | 0.0003 |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4370 |
| Manufacturers Catalog Number | 18167 |
| System Of Measurement | Fractional Inch |
| MSC Part # | 55602197 |
| Mfr Part # | 18167 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
