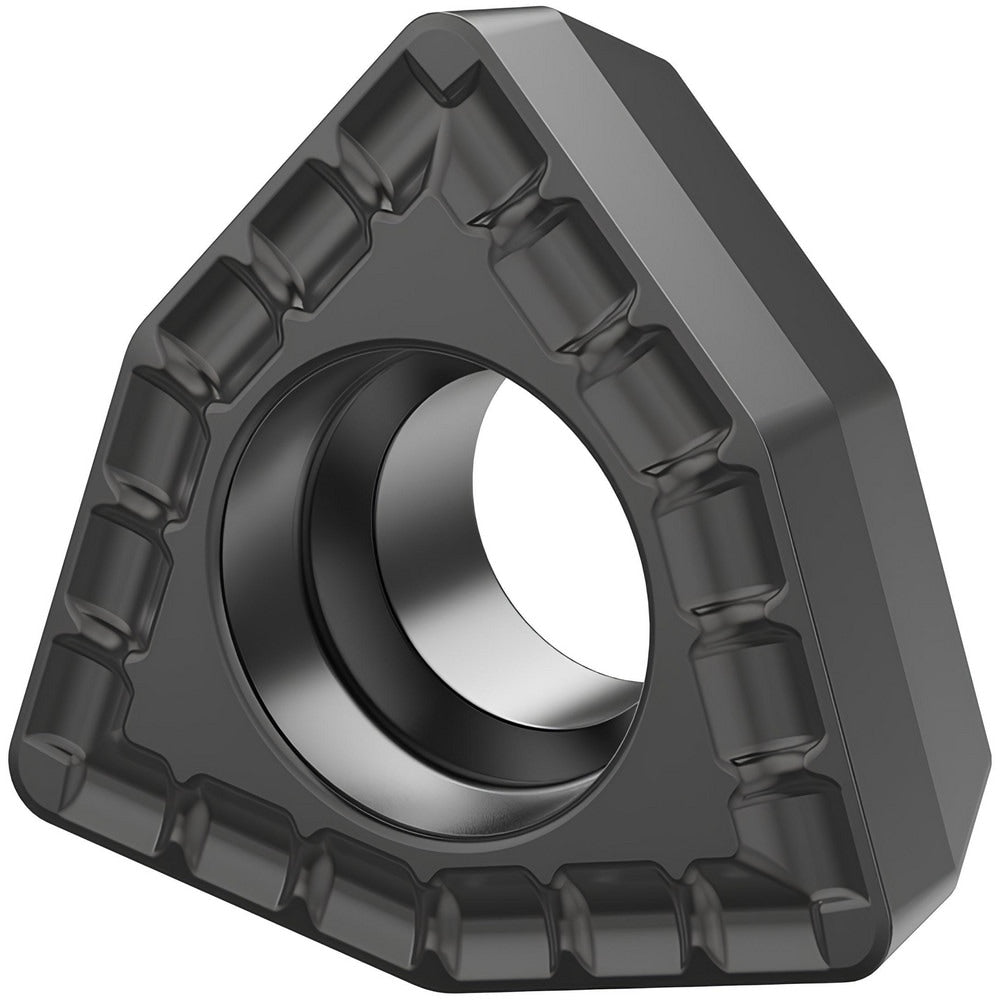

Indexable Drill Inserts; Insert Style: DFT; Insert Material: Carbide; Manufacturer Grade: KCMS35; Thickness (Inch): 3/16
Item #: 02545283
Brand: Kennametal
Model #: 7064730
Product Specifications
| Insert Style | DFT |
| Insert Material | Carbide |
| Manufacturer Grade | KCMS35 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (mm) | 12.00 |
| Corner Radius (Inch) | 1/32 |
| Chipbreaker | MD |
| Series | Drill Fix |
| Shape | Trigon |
| Relief Angle | 8 |
| Ansi Code | DFT070408MD |
| Iso Code | DFT070408MD |
| Compatible Drill Style | DFT |
| Insert Size | 07 |
| Width (mm - 2 Decimals) | 7.94 |
| Length (Mm) | 7.94 |
| Included Angle Degree | 8 |
| Coating/Finish | AlTiN |
| Insert Size Code | 07 |
| UNSPSC Code | 23242105 |
