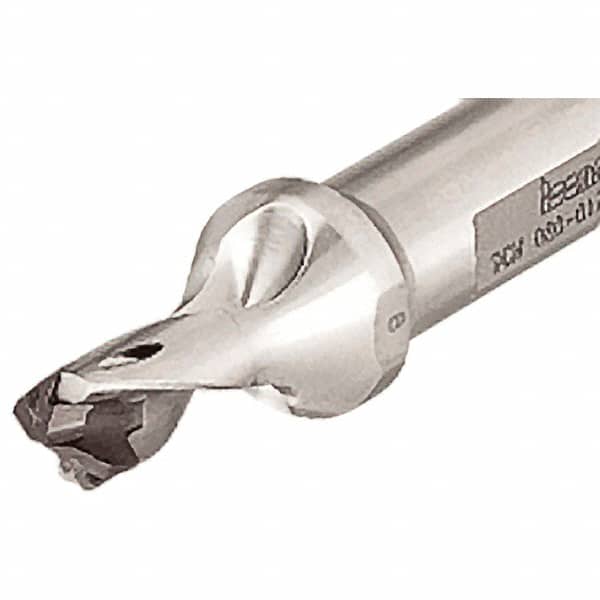

Iscar - 0.492" to 0.508" Diam, 1.5xD, 0.74" Max Depth, 5/8" Shank Diam, 3.27" OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 70913280 Toolholder, Series SumoCham
Item #: 70913280
Brand: Iscar
Model #: 3203349
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.4920 |
| Maximum Drill Diameter (Decimal Inch) | 0.5080 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.7400 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN A |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 1.3800 |
| Overall Length (Decimal Inch) | 3.2700 |
| Shank Length (Decimal Inch) | 1.8900 |
