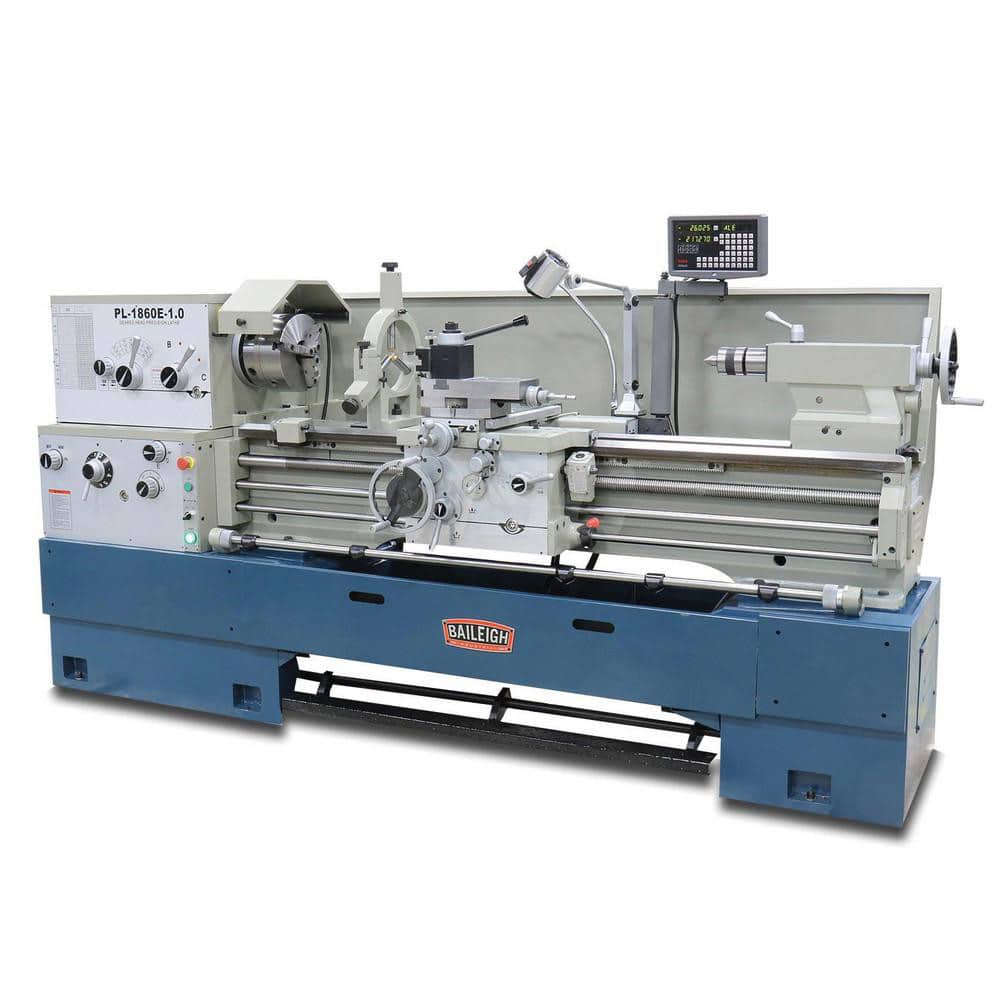

Toolroom Lathe: 18″ Swing, 60″, Variable 3-1/8″ Spindle Bore Dia, 7MT, 25 to 1,800 RPM, 3 Phase, 220V, 7.5 hp
Item #: 70917885
Brand: Baileigh
Model #: 1016624
Product Specifications
| Horsepower | 7.50 |
| Phase | 3 |
| Spindle Speed Control | Variable |
| Bed Width (Inch) | 13-1/8 |
| Distance Between Centers (Inch) | 60 |
| Gap Length (Decimal Inch) | 6.1250 |
| Cross Slide Travel (Inch) | 10-1/2 |
| Swing (Inch) | 18 |
| Spindle Bore Diameter (Inch) | 3-1/8 |
| Minimum Spindle Speed | 25 |
| Spindle Nose Designation | 7MT |
| Voltage | 220 |
| Maximum Spindle Speed | 1800 |
| Number of Inch Threads | 61 |
| Number of Metric Threads | 24 |
| Minimum Threads Per Inch | 1-5/8 |
| Number of Spindle Speeds | 12 |
| Maximum Threads Per Inch | 72 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0015 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0913 |
| Swing Over Cross Slide (Inch) | 10-3/4 |
| Swing Over Gap (Inch) | 27-1/2 |
| Machine Type | Toolroom Lathe |
