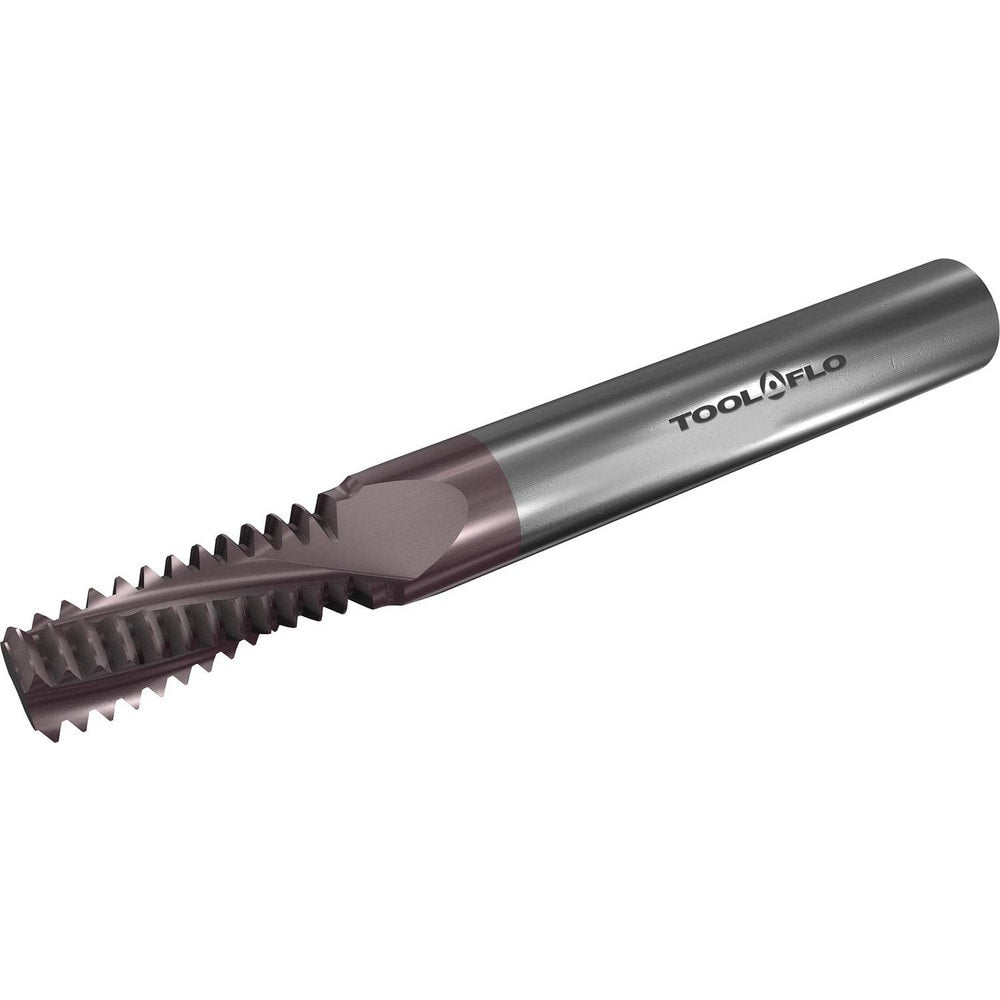

Helical Flute Thread Mill: #1-8, Internal, 4 Flute, 3/4" Shank Dia, Solid Carbide
Item #: 02356954
Brand: Tool-Flo
Model #: 2468776
Product Specifications
| Material | Carbide |
| Thread Size (Inch) | #1-8 |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6900 |
| Overall Length (Decimal Inch) | 4.0000 |
| Thread Standard | UN |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 8 |
| UNSPSC Code | 23242117 |
