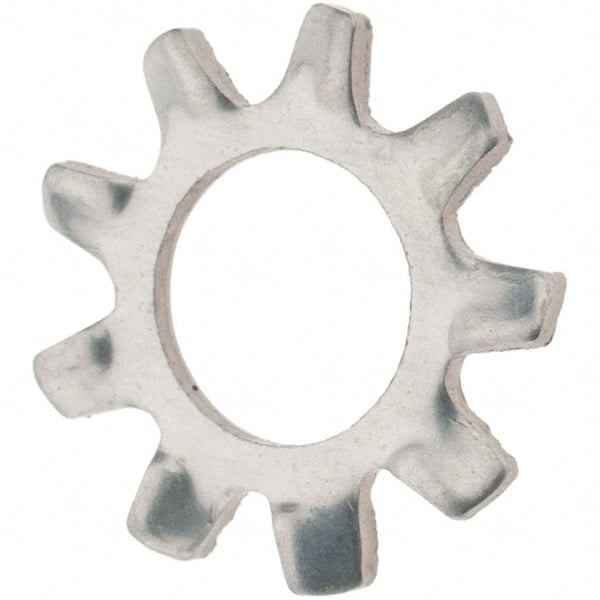

Value Collection - #10 Screw, 0.204" ID, Stainless Steel External Tooth Lock Washer - 0.41" OD, Grade 410
Item #: 70931746
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
External tooth lock washers have teeth along the outside diameter. They provide greater resistance to loosening than internal tooth lock washers.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Tooth Type | External Tooth |
| Screw Size | #10 |
| System of Measurement | Inch |
| Material | Stainless Steel |
| Inside Diameter (Decimal Inch) | 0.2040 |
| Outside Diameter (Decimal Inch) | 0.4100 |
| Thickness (Decimal Inch) | 0.025 |
| Material Grade | 410 |
| Minimum Inside Diameter (Decimal Inch) | 0.1950 |
| Minimum Outside Diameter (Decimal Inch) | 0.3950 |
| Minimum Thickness (Decimal Inch) | 0.0200 |
| Military Specification | Does Not Meet Military Specifications |
