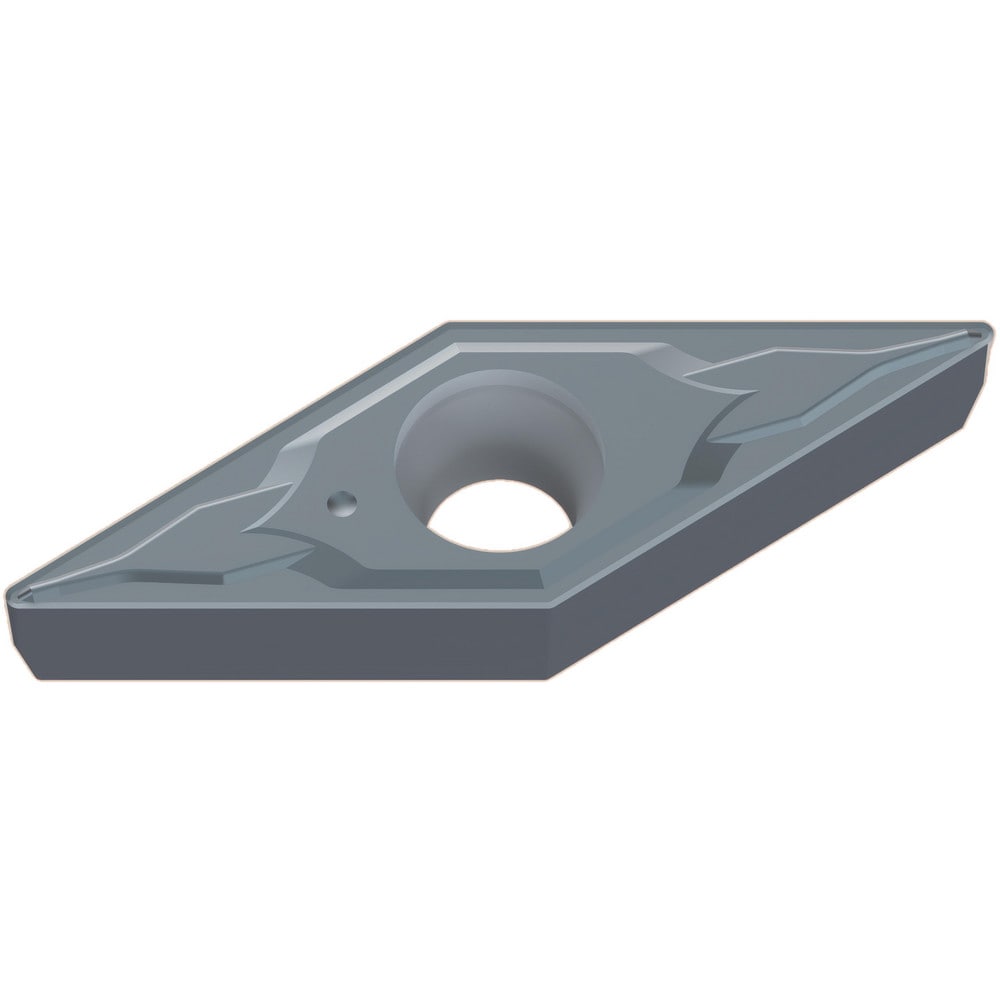

Turning Insert: VBMT221LS MP9025, Carbide
Item #: 04565040
Brand: Mitsubishi
Model #: 10610480
Product Specifications
| ANSI Insert Code | VBMT221 |
| ISO Insert Code | VBMT110304 |
| Relief Angle | 5 |
| Insert Style | VBMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35 |
| Manufacturer Grade | MP9025 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Clearance Code | B |
| Tolerance Code | M |
| Primary Workpiece Material Code | S |
| Chip Breaker | LS |
| ANSI Size Code | 221 |
| ISO Size Code | 110304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2 |
