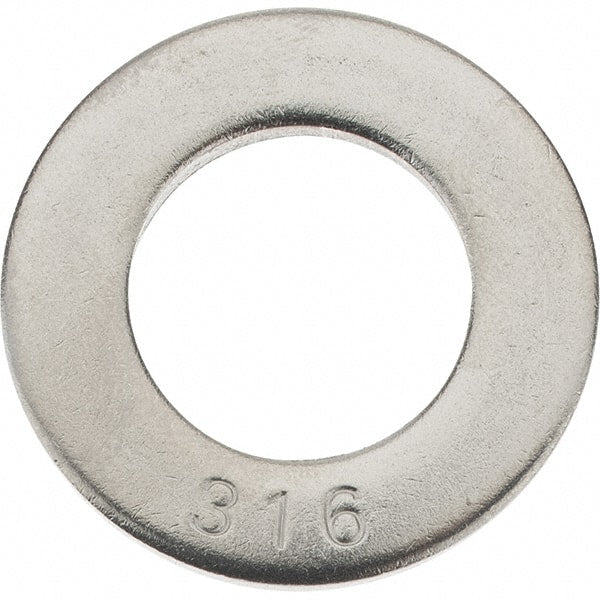

Value Collection - 3/4" Screw, Grade 316 Stainless Steel SAE Flat Washer - 13/16" ID x 2" OD, 0.148" Thick
Item #: 70943360
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
SAE (Society of Automotive Engineers) flat washers are thinner, have smaller outside diameters and fit tighter around bolts than USS (United States Standard) washers.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | SAE |
| System of Measurement | Inch |
| Screw Size | 3/4 |
| Inside Diameter (Inch) | 13/16 |
| Outside Diameter (Decimal Inch) | 2.0000 |
| Thickness (Decimal Inch) | 0.1480 |
| Material Grade | 316 |
| Material | Stainless Steel |
| Minimum Inside Diameter (Decimal Inch) | 0.7180 |
| Maximum Inside Diameter (Decimal Inch) | 0.8050 |
| Minimum Outside Diameter (Decimal Inch) | 1.9930 |
| Maximum Outside Diameter (Decimal Inch) | 2.0300 |
| Minimum Thickness (Decimal Inch) | 0.1220 |
| Maximum Thickness (Decimal Inch) | 0.1770 |
| Color | Silver |
