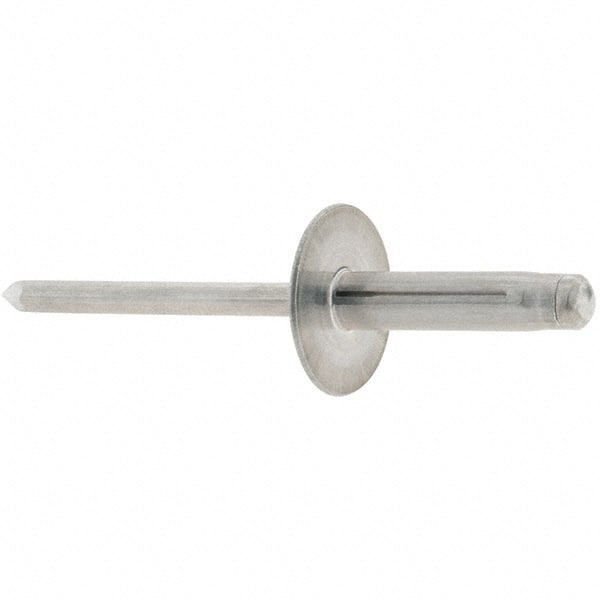

RivetKing - Large Flange Head Aluminum Peel Blind Rivet - Aluminum Mandrel, 0.063" to 1/4" Grip, 3/16" Body Diam
Item #: 70948039
Brand: RivetKing
Model #: ABL0625P100
Exact Tooling IR#: 04
Features and Benefits
Peel rivets have four petals that bend outward and secure to the back of the workpiece.
Large-flange head types have the largest bearing surface of blind rivets. They are used in oversized holes and to fasten soft or brittle materials to prevent pull-through.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Peel |
| Head Type | Large Flange |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.0630 |
| Maximum Grip (Decimal Inch) | 0.2500 |
| Body Diameter (Inch) | 3/16 |
