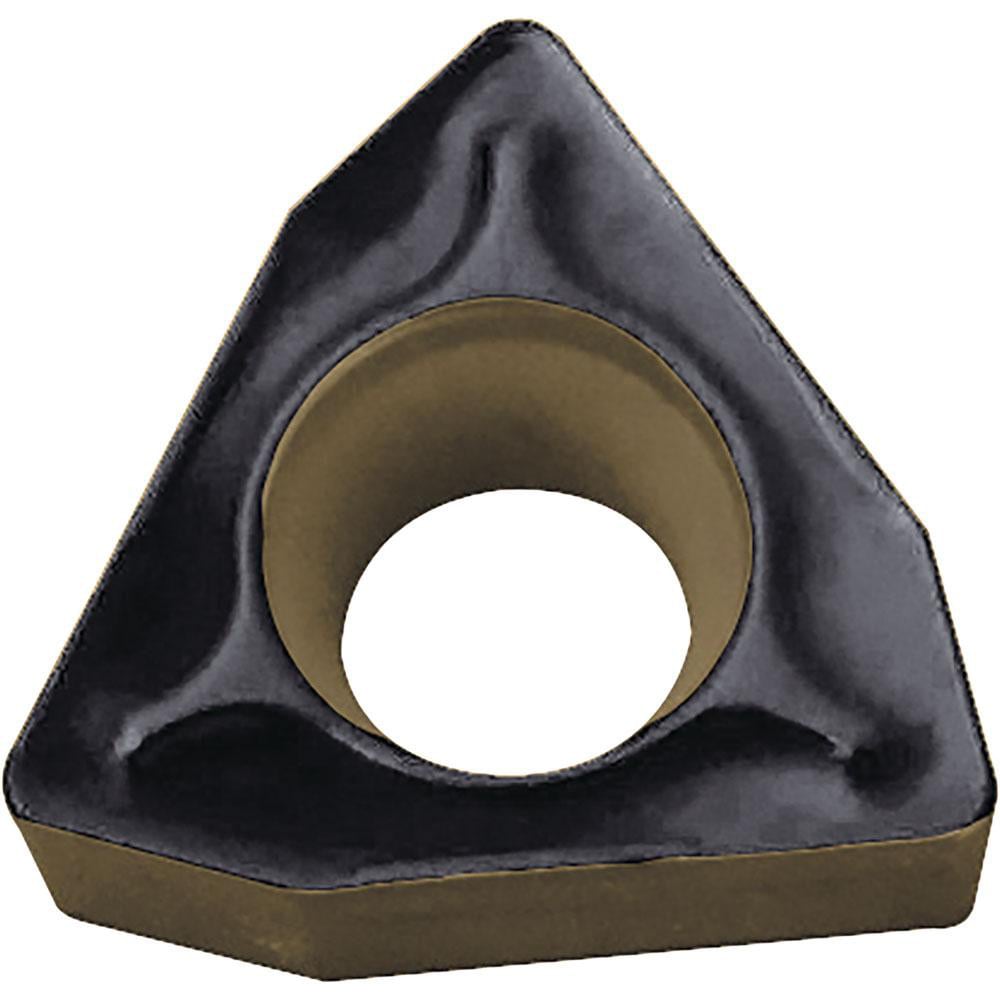

Boring Inserts; Insert Style: WBMT; Insert Size Code: 1211; Insert Material: Carbide; Manufacturer Grade: CA115P; Inscribed Circle (Inch): 5/32
Item #: 04474623
Brand: Kyocera
Model #: TML00465
Product Specifications
| Insert Style | WBMT |
| Insert Size Code | 1211 |
| Insert Material | Carbide |
| Manufacturer Grade | CA115P |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.3000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0158 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 5.000 |
| Rake | Positive |
| Chipbreaker | DP |
| Series | ISO Insert |
| Coating Process | CVD |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | WBMT060104L-DP |
| Manufacturers Catalog Number | WBMT1211LDPCA115P |
| Coating/Finish | TiCN/Al2O3/TiN |
| UNSPSC Code | 23242107 |
