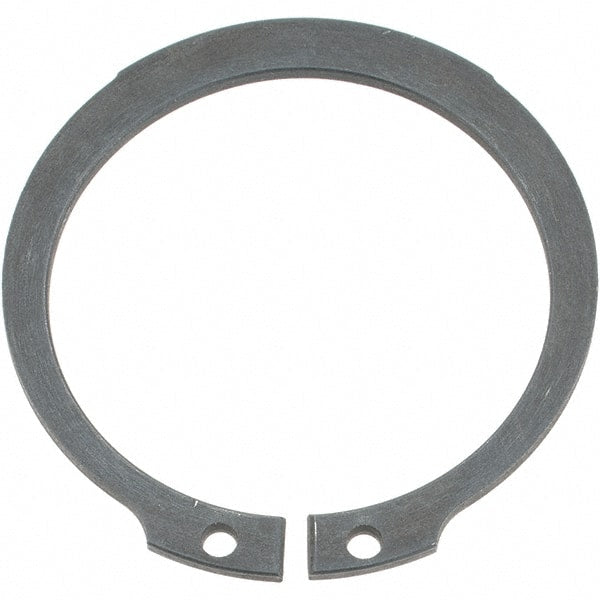

Rotor Clip - 43.5mm Groove Diam, 46mm Shaft Diam, Phosphate Spring Steel, Snap External Retaining Rings - 1.85mm Groove Width, 1.25mm Groove Depth, 1.75mm Ring Thickness, Grade DIN I7221 _ I7223
Item #: 70964556
Brand: Rotor Clip
Model #: DSH-46ST PD
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Metric |
| Shaft Diameter (mm) | 46.00 |
| Groove Diameter (mm) | 43.50 |
| Free Diameter (mm) | 42.50 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Spring Steel |
| Finish/Coating | Phosphate |
| Nominal Size (mm) | 43.50 |
| Material Grade | DIN I7221 _ I7223 |
| Groove Width (mm) | 1.85 |
| Groove Depth (mm) | 1.25 |
| Ring Thickness (mm) | 1.75 |
| Fastener Standard | DIN 471 |
