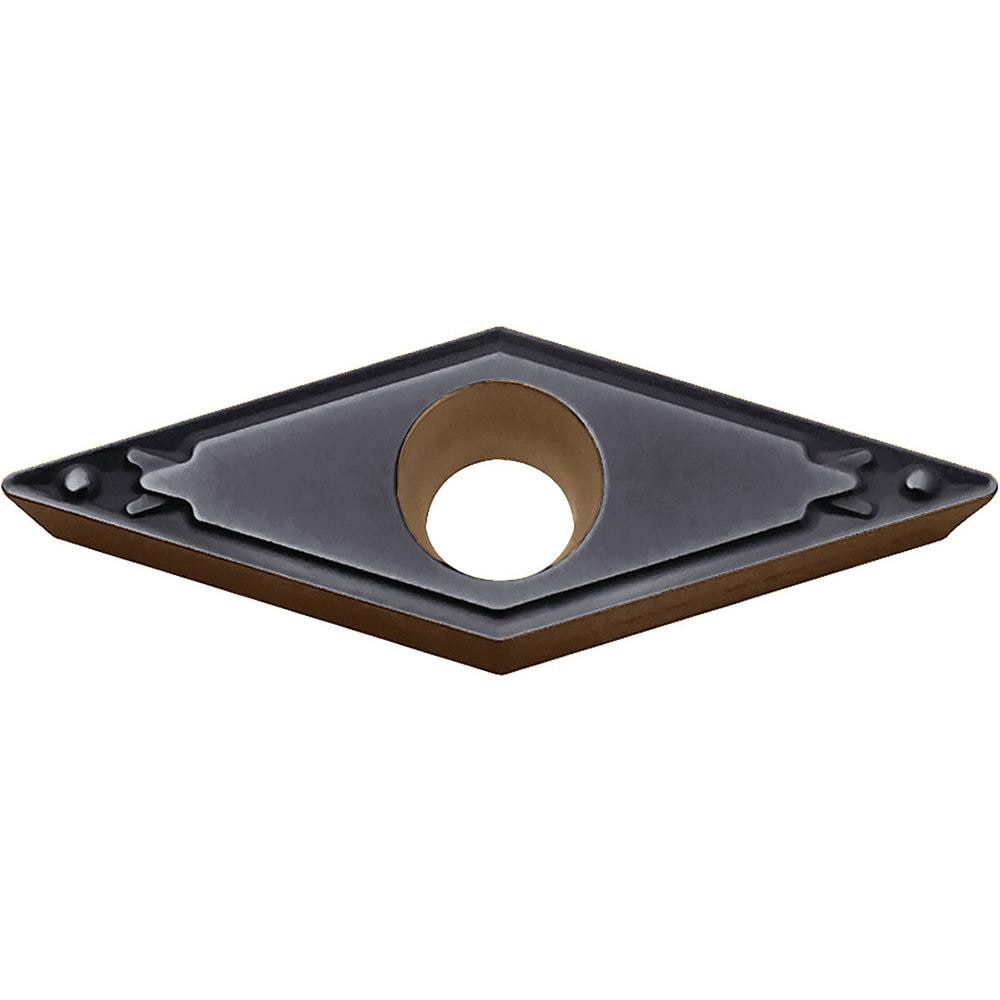

Turning Insert: VBMT333HQ CA125P, Carbide
Item #: 04611026
Brand: Kyocera
Model #: TMK00455
Product Specifications
| ANSI Insert Code | VBMT333 |
| ISO Insert Code | VBMT160412 |
| Relief Angle | 5 |
| Insert Style | VBMT |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 35 |
| Manufacturer Grade | CA125P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | B |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | VBMT160412HQ |
| Manufacturers Catalog Number | VBMT333HQCA125P |
| Chip Breaker | HQ |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
| ANSI Size Code | 333 |
| ISO Size Code | 160412 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 333 |
