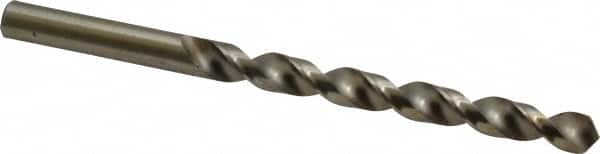

Cleveland - Letter M 118° High Speed Steel Jobber Drill
Item #: 63699136
Brand: Cleveland
Model #: C03097
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Letter) | M |
| Drill Bit Size (Decimal Inch) | 0.2950 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 3-1/16 |
| Overall Length (Inch) | 4-3/8 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.2950 |
| Spiral Type | Fast Spiral |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0010 to 0.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Series/List | 2012 |
