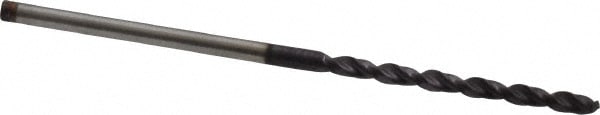

Jobber Drill: 1/16" Dia, 130 deg Point, Powdered Metal
Item #: 60319761
Brand: Guhring
Model #: 9005300015900
Product Specifications
| Drill Bit Size (Inch) | 1/16 |
| Drill Bit Size (Decimal Inch) | 0.0625 |
| Drill Bit Material | Powdered Metal |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Multi-layer |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.0625 |
| Overall Length (mm) | 40.00 |
| Overall Length (Decimal Inch) | 1.5748 |
| Flute Length (mm) | 18.00 |
| Flute Length (Decimal Inch) | 0.7087 |
| Proprietary Coating/Finish | FIREX |
| Series | 530 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 1/16 |
| Maximum Drilling Depth (Decimal Inch) | 0.6940 |
| Maximum Drilling Depth (mm) | 17.62 |
| Shank Length (mm) | 23 |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Material Grade | PM-ASP-60 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Inch) | 1/16 |
| Drill Bit Size (Decimal Inch) | 0.0625 |
| Drill Bit Material | Powdered Metal |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Multi-layer |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.0625 |
| Overall Length (mm) | 40.00 |
| Overall Length (Decimal Inch) | 1.5748 |
| Flute Length (mm) | 18.00 |
| Flute Length (Decimal Inch) | 0.7087 |
| Proprietary Coating/Finish | FIREX |
| Series | 530 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 1/16 |
| Maximum Drilling Depth (Decimal Inch) | 0.6940 |
| Maximum Drilling Depth (mm) | 17.62 |
| Shank Length (mm) | 23 |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Material Grade | PM-ASP-60 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 60319761 |
| Mfr Part # | 9005300015900 |
| Big Book Page # | 81 |
| Country of Origin Country of Origin is subject to change | Germany |
