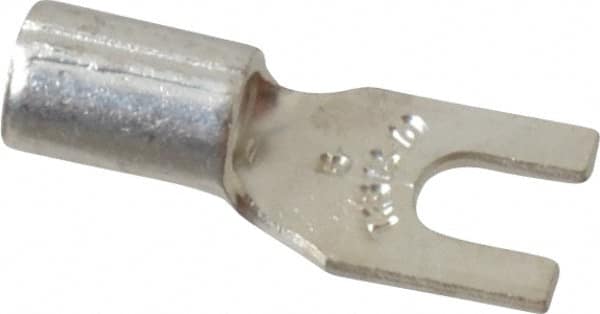

Thomas & Betts - #6 Stud, 12 to 10 AWG Compatible, Noninsulated, Crimp Connection, Standard Fork Terminal
Item #: 54064571
Brand: Thomas & Betts
Model #: C10-6F
| Product Specifications | |
|---|---|
| Terminal Type | Standard |
| Insulation Type | NonInsulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 12-10 |
| Stud Size (#) | 6 |
| Fork Width (Decimal Inch) | 0.3100 |
| Color | Yellow |
| Overall Length (Decimal Inch) | 0.7700 |
| Voltage | 600 V |
| Contact Material | Copper |
| Contact Plating | Tin |
| Standards Met | CSA 22.2; CSA Certified; RoHS Compliant; UL 486A; UL 486B; UL 94 V-0; UL File E9809; UL Listed |
